Wheels
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels we have the knowledge, experience and stock availability to assis...t you in making the best choice.Browse Keystone wheels online for a Industrial wheel suitable for Material Handling Trolleys , Industrial carts, Sack Trucks , Pneumatic Wheel applications, V Groove Rail wheels, Flange Rail wheels, Machine Wheels and Drive Wheels or call one our our experienced Technical Sales team for help you make your selection.
Because we carry vast stock of caster and trolley wheels we can handle large orders and small orders from both domestic and business customers. Our UK Castor & Wheel stocks include many models. Including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre , pneumatic (inflatable), puncture proof wheels (flat free wheels). All these castor wheels can have various options for bearings: Roller, Ball or Plain Bearings.
About Caster Wheel Bearings
The type of bearing used in a castor wheel affects the running properties of it and therefore the mobility of the unit they are fitted to:
Plain Bore Bearings (Plain Bore)
This is the most economical type of bearing. In fact, there isn't one. The wheel turns around an axle tube. They are great if the equipment they are attached to does not have to move much and when it does without a great deal of weight on it. Under normal circumstances, they are maintenance free and corrosion resistant.
Revvo PT Designer industrial wheels are available with a keyway.
Roller Bearings
This type has a series of steel rollers within a cage. The rollers rotate between the axle tube and the wheel hub. Using these bearings means that the rolling resistance of the bearing is very small, even under heavy load. This type of bearing is the most commonly used especially for transportation equipment. They are robust and generally maintenance free. Please note, in stainless steel castors the rollers are stainless steel and in high temperature wheels, the cage is made from steel.
Ball Bearings
Castor wheel ball bearings consist of a stamped sheet metal housing enclosing an inner and outer ring. The ball bearings run between these two rings. This type of bearing has excellent running properties even under very heavy loads and at high speeds. Because the bearings are sealed, these bearings do not need to be lubricated. This is the engineers choice for apparatus castors and heavy duty casters in most applications. Read More
- Display 15 Products per page

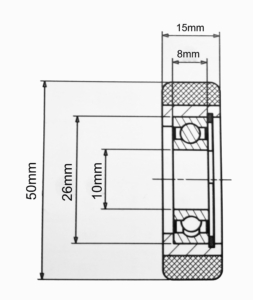

In StockGuide Roller, 50mm X 15mm, Polyurethane Tyre, 10mm Ball Bearing, 110kg (KGR5015PTSTB10)
£28.6850mm Guide Roller with a 15mm Tread Width with a s... Read Moreingle 10mm shielded ball bearing (6000ZZ). The wheel's tyre is polyurethane (91 Shore A Hardness) on a steel centre with a Load Capacity of 110kg.- In Stock
Guide Roller, 60mm X 20mm, Polyurethane Tyre, 20mm Ball Bearing, 120kg (KGR6020PTSTB20)
£28.7560mm Guide Roller with a 20mm Tread Width with a s... Read Moreingle 20mm ball bearing (6004ZZ). The wheel's tyre is polyurethane (91 Shore A Hardness) on a steel centre with a Load Capacity of 120kg. - In Stock

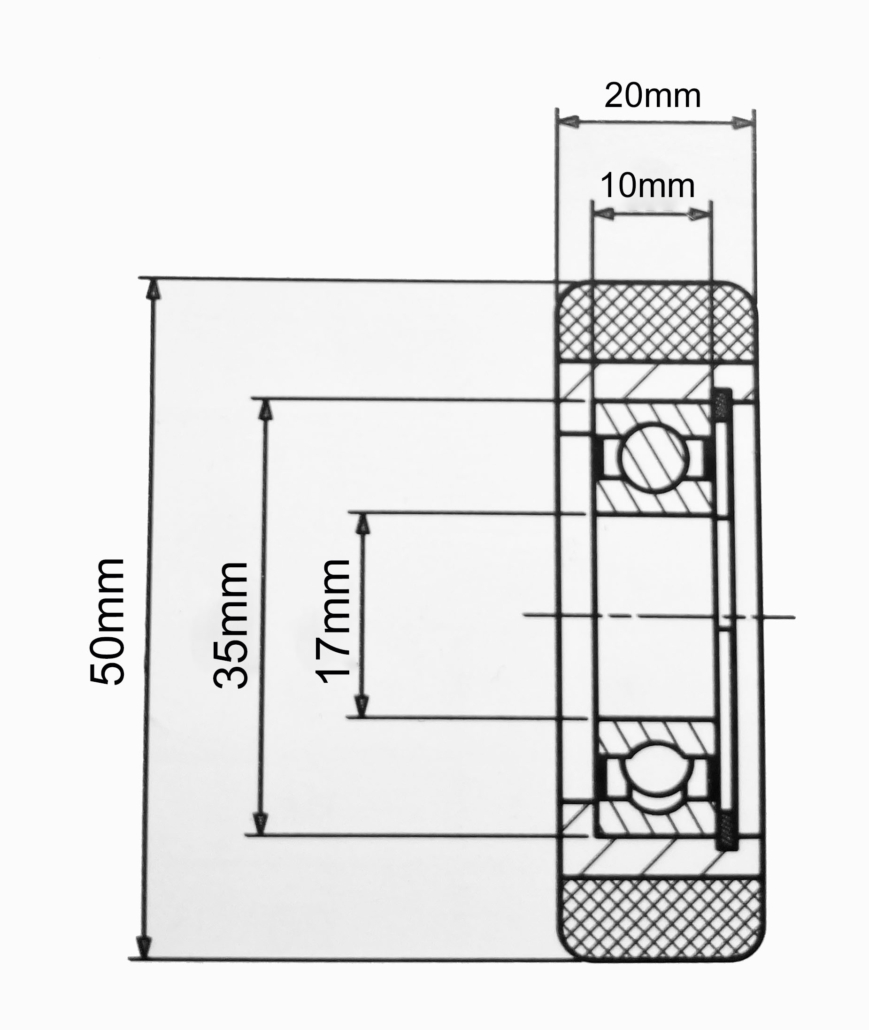

Guide Roller, 50mm X 20mm, Polyurethane Tyre, 17mm Ball Bearing, 110kg (KGR5020PTSTB17)
£28.7550mm Guide Roller with a 20mm Tread Width with a s... Read Moreingle 17mm shielded ball bearing (6003ZZ). The wheel's tyre is polyurethane (91 Shore A Hardness) on a steel centre with a Load Capacity of 110kg. - In Stock
Castor Wheel 100mm | Cast Iron, 300kg, 20mm Ball bearing (KW100CI2H)
£28.87100mm Cast Iron Wheel with 20mm Ball Bearing. Load Capacity = 300kg - Out of Stock - On the Way
Castor Wheel 75mm | Polyurethane Tyre / Cast Iron Centre, 175kg, 12mm Roller Bearing (075PT14)
£29.1975mm Polyurethane Tyre on a Cast Iron Centre Revvo... Read More Wheel with a 45mm Hub Length (the distance through the central bore) and a 12mm Roller Bearing. Load Capacity = 175Kg - In Stock

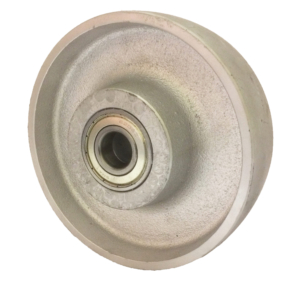

Castor Wheel 150mm | Cast Iron, 600kg, 25mm Ball bearing (15025441)
£29.66150mm Cast Iron Wheel with 25mm Ball Bearing. Load Capacity = 600kg - In Stock
Pneumatic Wheel 400mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 25.4mm Roller Bearing (PWP400RB1)
£29.74400mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.8/4.00-8). This size wheel is often referred to as a 16" or 16 Inch Wheel. It has a 4 Ply rating tyre with Rib tread, 63mm Hub Length and 1 inch (1" or 25.4mm) Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bad floors. - In Stock
Pneumatic Wheel 400mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 25mm Roller Bearing (PWP400RB25)
£29.74400mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.8/4.00-8). This size wheel is often referred to as a 16" or 16 Inch Wheel. It has a 4 Ply rating tyre with Rib tread with a 63mm Hub Length and 25mm Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bad floors. - In Stock
Pallet Roller, 85mm X 80mm, Polyurethane Tyre, 25mm Ball Bearing, 700kg (KR8580PTB25)
£29.9085mm X 80mm Pallet Roller with a polyurethane tyre... Read More (92 Shore A Hardness) on a steel centre. 25mm Ball Bearing and a Load Capacity of 700kg (working speed 4 km/h).This pallet roller is abrasion resistant with a low rolling resistance. - In Stock
Rail Wheel 150mm | Parallel Tread, 1000kg, 20mm Roller Bearing (150CF1H)
Original price was: £41.25.£29.92Current price is: £29.92.Sale!150mm Single Flange Heavy Duty Cast Iron Wheel (Re... Read Morevvo Brand) with a Load Capacity of 1,000kg. This wheel has a 90o Flange that is 14mm high. The tread is 35mm with the total width (including the flange) being 45mm. The hub length (the distance through the central bore) is 60mm and houses a 20mm roller bearing. It is finished with a clear resin shellac.The single flanged wheel is for rail used. Cast Iron combine strength, durability and shock resistance with long life and economy. It has very very low tractive resistance and is a great choice where ease of movement in needed. - In Stock
Pneumatic Wheel 400mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 20mm Roller Bearing (PWP400RB20)
£30.12400mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.8/4.00-8). This size wheel is often referred to as a 16" or 16 Inch Wheel. It has a 4 Ply rating tyre with Rib tread, 63mm Hub Length and 20mm Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bad floors. - In Stock
Castor Wheel 150mm | Rubber Tyre / Cast Iron, 400kg, 20mm Ball Bearing (15020341)
£30.23150mm Castor Wheel with Black Rubber Tyre on a Cas... Read Moret Iron. This wheel has 20mm Ball Bearings and a load capacity of 400kg using manual propulsion at 4km/h. - In Stock

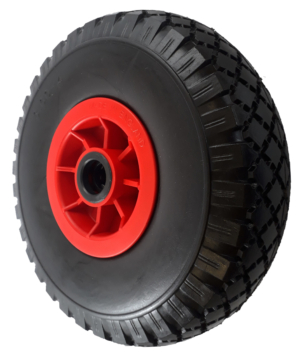

Pneumatic Wheel 300mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 25.4mm Roller Bearing (PWP300RB1)
£30.69300mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.00-4). This pneumatic castor wheel has a 4 Ply rating tyre with Diamond tread, 73mm Hub Length and 1 inch (25.4mm) Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impacts from bumpy surfaces. - In Stock
Pneumatic Wheel 300mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 25mm Roller Bearing (PWP300RB25)
£30.69300mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.00-4). This pneumatic castor wheel has a 4 Ply rating tyre with Diamond tread, 73mm Hub Length and 25mm Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bumpy surfaces. - In Stock
Pneumatic Wheel 300mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 20mm Roller Bearing (PWP300RB20)
£31.08300mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.00-4). This pneumatic castor wheel has a4 Ply rating tyre with Diamond tread, 73mm Hub Length and 20mm Roller Bearing. Load Capacity = 150kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bumpy surfaces.
