Wheels
Keystone Castors & Wheels stocks the widest range of castor wheels suitable for most castor and industrial applications. We have been Castor & Wheel specialists since 1926. Whether you're looking for a replacement caster wheel or a bulk purchase of industrial wheels we have the knowledge, experience and stock availability to assis...t you in making the best choice.Browse Keystone wheels online for a Industrial wheel suitable for Material Handling Trolleys , Industrial carts, Sack Trucks , Pneumatic Wheel applications, V Groove Rail wheels, Flange Rail wheels, Machine Wheels and Drive Wheels or call one our our experienced Technical Sales team for help you make your selection.
Because we carry vast stock of caster and trolley wheels we can handle large orders and small orders from both domestic and business customers. Our UK Castor & Wheel stocks include many models. Including nylon, rubber tyre, polyurethane, cast iron, polypropylene tyre , pneumatic (inflatable), puncture proof wheels (flat free wheels). All these castor wheels can have various options for bearings: Roller, Ball or Plain Bearings.
About Caster Wheel Bearings
The type of bearing used in a castor wheel affects the running properties of it and therefore the mobility of the unit they are fitted to:
Plain Bore Bearings (Plain Bore)
This is the most economical type of bearing. In fact, there isn't one. The wheel turns around an axle tube. They are great if the equipment they are attached to does not have to move much and when it does without a great deal of weight on it. Under normal circumstances, they are maintenance free and corrosion resistant.
Revvo PT Designer industrial wheels are available with a keyway.
Roller Bearings
This type has a series of steel rollers within a cage. The rollers rotate between the axle tube and the wheel hub. Using these bearings means that the rolling resistance of the bearing is very small, even under heavy load. This type of bearing is the most commonly used especially for transportation equipment. They are robust and generally maintenance free. Please note, in stainless steel castors the rollers are stainless steel and in high temperature wheels, the cage is made from steel.
Ball Bearings
Castor wheel ball bearings consist of a stamped sheet metal housing enclosing an inner and outer ring. The ball bearings run between these two rings. This type of bearing has excellent running properties even under very heavy loads and at high speeds. Because the bearings are sealed, these bearings do not need to be lubricated. This is the engineers choice for apparatus castors and heavy duty casters in most applications. Read More
- Display 15 Products per page
In StockCastor Wheel 200mm | Polyurethane Tyre / Nylon Centre, 600kg, 20mm Ball bearing (AW200PNBJ)
£33.82200mm Polyurethane Tyred / Nylon Centre Wheel with... Read More 20mm Ball bearing. Load Capacity = 600kg- In Stock
Castor Wheel 200mm | Black Rubber Tyre / Pressed Steel Centre, 205kg, 25mm Roller Bearing (AW200RMB25)
£12.83200mm Black Solid Rubber Tyre on a Pressed Steel C... Read Moreentre Wheel with 25mm Roller Bearing, 50mm Tread Width and 58mm Hub length. Load Capacity = 205kg - In Stock
V Grooved Wheel 200mm | V Grooved Cast Iron, 1000kg, 25mm Roller Bearing (200CV1H)
£94.97200mm V-Groove Cast Iron Wheel (Genuine Revvo bran... Read Mored) with a clear resin shellac finish and a 25mm Roller Bearing. The wheel's load capacity is 1,000kg and is ideal for use on inverted angle iron rail. - In Stock
Puncture Proof Wheel 260mm | Puncture Proof Tyre / Red Polypropylene Centre, 120kg, 25mm Roller Bearing (PP260RPB25D)
£41.03260mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Diamond Tread on a Red Polypropylene Centre. This Wheel has a 25mm Roller Bearing, 85mm Tread Width, 73mm Hub Length, and 120kg Load Capacity - In Stock
Pneumatic Wheel 400mm | Pneumatic Tyre / Red Polypropylene Centre, 150kg, 20mm Plain Bore (PWP400PB20)
£28.22400mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (4.8/4.00-8). This size wheel is often referred to as a 16" or 16 Inch Wheel. It has a 4 Ply rating tyre with Rib tread, 63mm Hub Length and 20mm Plain Bore. Load Capacity = 150kg - In Stock
Castor Wheel 200mm | Phenolic Resin, 300kg, 20mm Plain Bore (AW200HT)
£50.77200mm Phenolic Resin wheel with 20mm Plain bore. S... Read Moreuitable for High Temperature applications to +280 deg C. Load Capacity = 300kg - In Stock
Puncture Proof Wheel 200mm | Puncture Proof Tyre / Red Polypropylene Centre, 50kg, 25.4mm Roller Bearing (PP200RPB1R)
£22.62200mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Rib Tread on a Red Polypropylene Centre. This Wheel has a 25.4mm Roller Bearing, 50mm Tread Width, 52mm Hub Length, and 50kg Load Capacity - In Stock

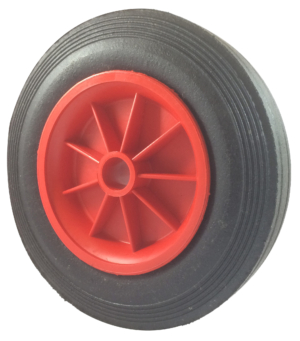

Rubber Tyre Trolley/Sack Truck Wheel 200mm | Black Rubber Tyre / Red Polypropylene (Plastic) Centre, 200kg, 25.4mm Plain Bore (EPR20025.4/51RED)
£6.50200mm Black Solid Rubber Tyre on a Red Polypropyle... Read Morene (Plastic) Centre Sack Truck wheel with 1 inch (25.4mm) Plain Bore. Load Capacity = 200kg.This 8 inch (20 centimetre) diameter wheel (from outside edge of the black rubber tyre) is suitable for use as a trolley or cart wheel, sack truck wheel, castor wheel or anywhere where the axle the wheel is being fitted onto has a 24.5mm (1 inch) diameter. - In Stock
Castor Wheel 200mm | Cast Iron, 1270kg, 20mm Roller Bearing (WCI8RBM20)
£40.46200mm Castor Wheel Cast Iron (Flexello Brand) comp... Read Morelete with grease nipple. This Cast Iron Wheel has a 45mm Tread Width, 60mm Hub Length (the distance through the central bore) and a 20mm Needle Roller Bearing. The Load Capacity is 1270kgCast Iron Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials. - In Stock
Guide Roller, 50mm X 20mm, Polyurethane Tyre, 12mm Ball Bearing, 60kg (KGR5020PTB12)
£13.7650mm Guide Roller with a 20mm Tread Width with a s... Read Moreingle 12mm shielded ball bearing (6201ZZ). The guide wheel's tyre is polyurethane (92 Shore A Hardness) with a Load Capacity of 60kg. - In Stock
Pneumatic Wheel 360mm | Pneumatic Tyre / Red Polypropylene Centre, 125kg, 25mm Plain Bore (PWP360PB25)
£25.51360mm Black Pneumatic Rubber Tyre / Red Polypropyl... Read Moreene Centre Wheel (3.50-8). This pneumatic castor wheel has a 4 Ply rating tyre with Rib tread, 63mm Hub Length and 25mm Plain Bore. Load Capacity = 125kg.Pneumatic Wheels are rubber tyres that are inflated with air. They are used in either a castor frame or mobile handling equipment such as garden trolleys, carts, sack trucks and other transport equipment. Being a very soft tyre they exceptionally kind on floors and provide great operator comfort. Pneumatic castor wheels have a bit of bounce which lowers the rolling resistance on uneven surfaces. Therefore, they protect the transportation unit from much of the impact loads from bad floors. - In Stock
Designer Polyurethane Tyre Wheel 100mm | Polyurethane Tyre / Cast Iron, 500kg, 12mm Plain Bore (10040PT012)
£61.50100mm Polyurethane (Extra Heavy Duty) Tyred / C... Read Moreast Iron Centre Wheel with 12mm Plain Bore. This is a high performance wheel using premium grade REVVOTHANE polyurethane which is a high quality tyre with a high load bearing capacity, minimal heat build up and a high abrasion resistance. This wheel is often used in conveyor and transportation systems.
The Load capacity quoted is for operation under ideal conditions where the wheel operates infrequently and on a smooth surface. The wheel's load capacity must be reduced as indicated for any of the following conditions. Please note that these are cumulative if more than one condition exists:
- Reduce load by 25% if continuous use for more than 45 minutes.
- Reduce Load by further 30% if used as Drive Wheel.
- Reduce load by further 30% if used at speeds greater than 6kp/h.
- In Stock
Castor Wheel 125mm | Nylon, 300kg, 15mm Ball bearing (AW125NYBJ)
£13.71125mm Nylon Wheel with 15mm Ball Bearing. Load Capacity = 300kg - In Stock
Castor Wheel 200mm | Polyurethane Tyre / Cast Iron Centre, 1100kg, 20mm Ball Bearing (20020241)
£65.43200mm Polyurethane Tyre on a Cast Iron Centre Cast... Read Moreor Wheel with 20mm Ball Bearings, 50mm Tread Width and 60mm Hub Length (the distance through the bore). Load Capacity = 1100kgThe polyurethane used as the tyre is a high quality polyurethane that has a high tear strength, exceptional abrasion resistance and a useful life of up to 10 times that of equivalent rubber tyres under similar conditions and loads. - In Stock
Puncture Proof Wheel 260mm | Puncture Proof Tyre / Red Polypropylene Centre, 120kg, 20mm Plain Bore (PP260RP20D)
£37.85260mm Puncture Proof Wheel (Micro-Cellular Polyure... Read Morethane) with a Diamond Tread on a Red Polypropylene Centre. This Wheel has a 20mm Plain Bore, 85mm Tread Width, 76mm Hub Length, and 120kg Load Capacity
