Cast Iron Wheels
Cast Iron wheels and castor wheels which combine strength and shock resistance with long life and economy. They have a very low tractive resistance and are a first choice where ease of movement is needed.Cast Iron Metal Wheels are a hard wheel and are generally capable of taking heavier loads than soft materials (e.g. Rubb...er tyres). However, this means that when running over uneven surfaces, the impact loads and vibrations are not absorbed by the wheel.
These caster wheels are undoubtedly tough but can cause floor wear and noise. None-the-less, cast iron is a good choice as a wheel material used primarily where a rough service condition prevails.
Cast Iron Heavy Duty Castor Wheels can be used as a replacement wheel in castors. If you are looking to replace an existing caster wheel, please check the hub length (the distance through the central bore). You will also need to measure the bore diameter of the central hole and the type of wheel bearing being. These are usually a Smooth Plain Bore, Roller Bearing or Ball Bearings. Read More
- Display 15 Products per page
In Stock200mm High Temperature Cast Iron Wheel, 20mm Steel Roller Bearing, 1270kg (WCI8RBM20HT)
£39.11200mm High Temperature Cast Iron Castor Wheel with... Read More 45mm Tread width, 20mm Steel Roller Bearing and 60mm Hub Length (the distance through the central bore). This wheel has a steel caged roller bearing and bearing retainer enabling the wheel to withstand high temperatures of up to 200 degrees Celsius. This is a heavy duty wheel with a load capacity of this wheel is 1,270kg.Cast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials.- In Stock
Castor Wheel 100mm | Cast Iron, 250kg, 12mm Plain Bore (100CI04)
£10.48100mm Cast Iron Wheel (Revvo Brand) with 12mm P... Read Morelain Bore, 38mm Tread Width and 45mm Hub Length. Load Capacity = 250Kg.
These castor wheels are able to withstand high temperatures and combine strength and shock resistance with long life and economy, The have very low tractive resistance and are first choice where ease of movement is required. Cast Iron can cause floor wear and noise. Although protected by a clear lacquer finish, like all ferrous metals, they will eventually rust.
The Revvo CI Series cast iron wheels are close grained casting of grey iron material sometimes described as semi-steel.
- In Stock
Castor Wheel 100mm | Cast Iron, 300kg, 20mm Ball bearing (KW100CI2H)
£28.87100mm Cast Iron Wheel with 20mm Ball Bearing. Load Capacity = 300kg - In Stock
Castor Wheel 100mm | Cast Iron, 450kg, 15mm Plain Bore (KW100CI15)
Original price was: £13.70.£8.22Current price is: £8.22.Sale!100mm Cast Iron Wheel (Keystone) with 15mm Smooth ... Read MorePlain Bore, 38mm Tread width and 48mm Hub Length (the distance through the bore). The load capacity of this wheel is 450kg using manual propulsion.Keystone Cast Iron wheels combine strength and shock resistance with long life. Being a hard tread they have a very low tractive resistance and are the first choice where ease of movement is needed and rough service conditions prevail. - In Stock
Castor Wheel 100mm | Cast Iron, 450kg, 15mm Plain Bore (WCI4M15)
£14.10100mm Cast Iron Wheel (Flexello Brand) with 15mm S... Read Moremooth Plain Bore, 38mm Tread width and 48mm Hub Length (the distance through the bore). The load capacity of this wheel is 450kg using manual propulsion.Flexello Cast Iron wheels combine strength and shock resistance with long life. Being a hard tread they exhibit very low tractive resistance and are the first choice where ease of movement is needed and rough service conditions prevail. - In Stock
Castor Wheel 100mm | Cast Iron, 450kg, 15mm Roller Bearing (WCI4RBM15)
£17.89100mm Cast Iron Wheel (Flexello Brand) with 15... Read Moremm Roller Bearing. This castor wheel has a 38mm tread width and a 48mm Hub Length (the distance through the wheel's central bore) . The Load Capacity is 450kg using manual propulsion at 4km/h (walking speed).
Flexello Cast Iron wheels combine strength and shock resistance with long life. Being a hard tread they exhibit very low tractive resistance and are the first choice where ease of movement is needed and rough service conditions prevail.
Like all cast iron wheels, they can cause floor wear and noise.
- In Stock
Castor Wheel 125mm | Cast Iron, 500kg, 20mm Ball bearing (12520441)
£23.49125mm Cast Iron Wheel with 20mm Ball Bearings, 40m... Read Morem Tread Width and 60mm Hub Length (then distance through the wheel's central bore). The Load Capacity of this castor wheel is 500kg. - Out of Stock - On the Way
Castor Wheel 125mm | Cast Iron, 600kg, 15mm Plain Bore (KW125CI15)
£13.96125mm Cast Iron Wheel with 15mm Plain Bore. Load Capacity = 600kg - In Stock
Castor Wheel 125mm | Cast Iron, 630kg, 15mm Plain Bore (WCI5M15)
£17.39125mm Cast Iron Wheel (Wheel - Hard Tread) with P... Read Morelain Bore. Load Capacity = 630kg - In Stock
Castor Wheel 125mm | Cast Iron, 630kg, 15mm Roller Bearing (WCI5RBM15)
£19.73125mm Cast Iron Wheel (Wheel - Hard Tread) with R... Read Moreoller Bearing. Load Capacity = 630kg - In Stock

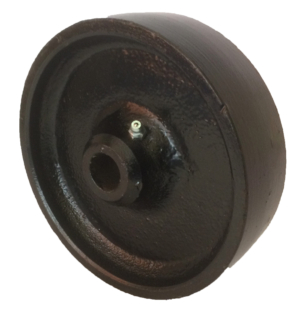

Castor Wheel 150mm | Cast Iron, 1000kg, 20mm Plain Bore, (KW150CI20)
£18.08150mm Cast Iron Castor Wheel with 45mm Tread with,... Read More 60mm Hub Length and 20mm Plain Bore. Load Capacity = 1000kgCast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials. - In Stock
Castor Wheel 150mm | Cast Iron, 1000kg, 20mm Plain Bore, 150CI05 (150CI05)
£19.30150mm Cast Iron Wheel (Revvo Brand) 45mm Tread Wid... Read Moreth, 60mm Hub Length and 20mm Smooth Plain Bore. Load Capacity = 1000kgThese castor wheels are able to withstand high temperatures and combine strength and shock resistance with long life and economy, The have very low tractive resistance and are first choice where ease of movement is required. Cast Iron can cause floor wear and noise. Although protected by a clear lacquer finish, like all ferrous metals, they will eventually rust.The Revvo CI Series cast iron wheels are close grained casting of grey iron material sometimes described as semi-steel. - In Stock
Castor Wheel 150mm | Cast Iron, 1000kg, 20mm Roller Bearing (150CI15)
£28.16150mm Cast Iron Wheel (Revvo Brand) with 45mm Trea... Read Mored Width, 20mm Roller Bearing and 60mm hub length (distance through the central bore). Load Capacity = 1000kg.These castor wheels combine strength and shock resistance with long life and economy, The have very low tractive resistance and are first choice where ease of movement is required. Cast Iron can cause floor wear and noise.The Revvo CI Series cast iron wheels are close grained casting of grey iron material sometimes described as semi-steel. - In Stock

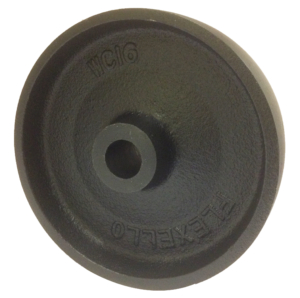

Castor Wheel 150mm | Cast Iron, 1180kg, 20mm Plain Bore (WCI6M20)
£21.69150mm Cast Iron Castor Wheel with 45mm Tread with,... Read More 60mm Hub Length and 20mm Plain Bore. Load Capacity = 1180kgCast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials. - In Stock
Castor Wheel 150mm | Cast Iron, 1180kg, 20mm Roller Bearing (WCI6RBM20)
£27.66150mm Cast Iron Castor Wheel (Flexello) with 20mm ... Read MoreRoller Bearing, 60mm Hub Length (the distance through the central bore) and 45mm Tread Width. The Load Capacity of the castor wheel is 1180kg.Cast Iron Castor Wheels are a great choice for many rough service applications because they are strong, shock resistant and have a long working life. They have a very low tractive resistance which aids in the ease of movement and are not susceptible to picking up swarf and other floor debris which may hamper the performance of other Castor Wheel materials.
