£87.85Inc VAT £105.42
Recommended Max. Load over 4 Castors = 1350kg : 3 x Load Capacity of Castor (450kg)

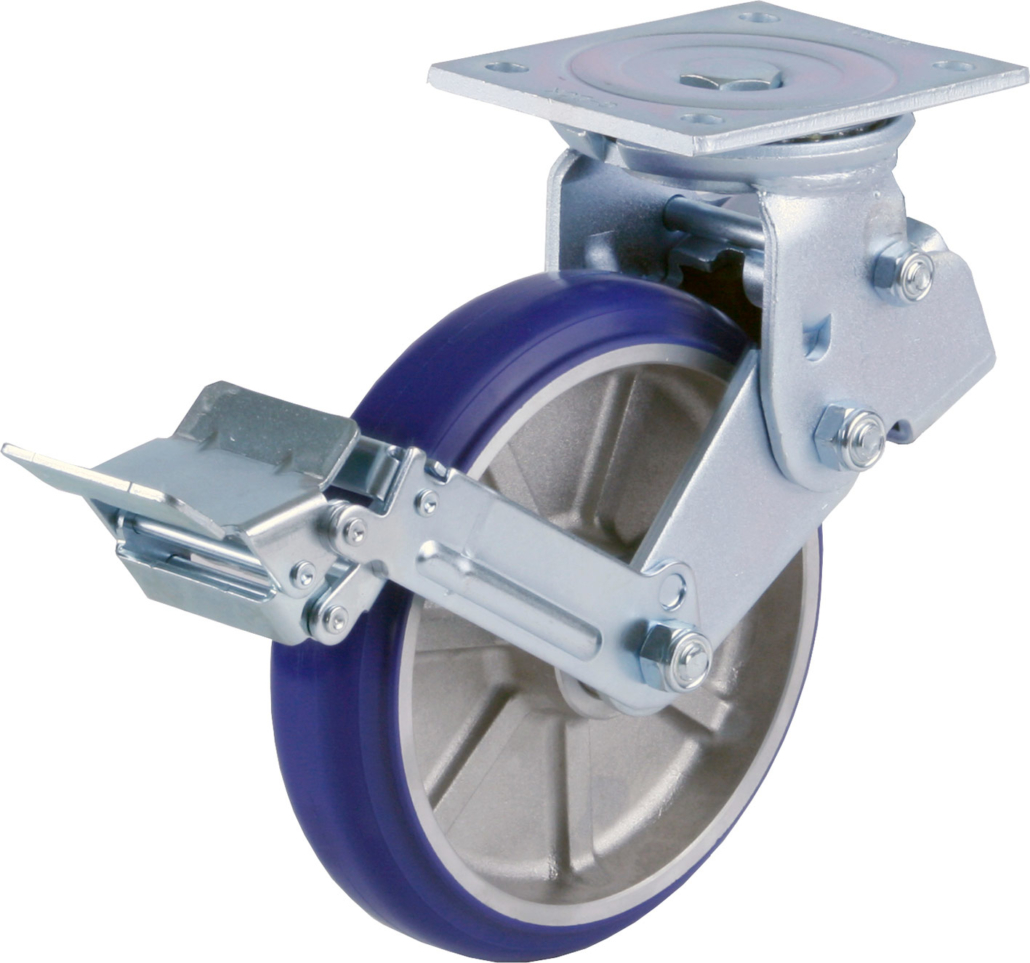

200mm Shock absorbing (15mm Compression) Swivel castor with Brake and Polyurethane Tyred Aluminium Wheel. Load Capacity = 450kg

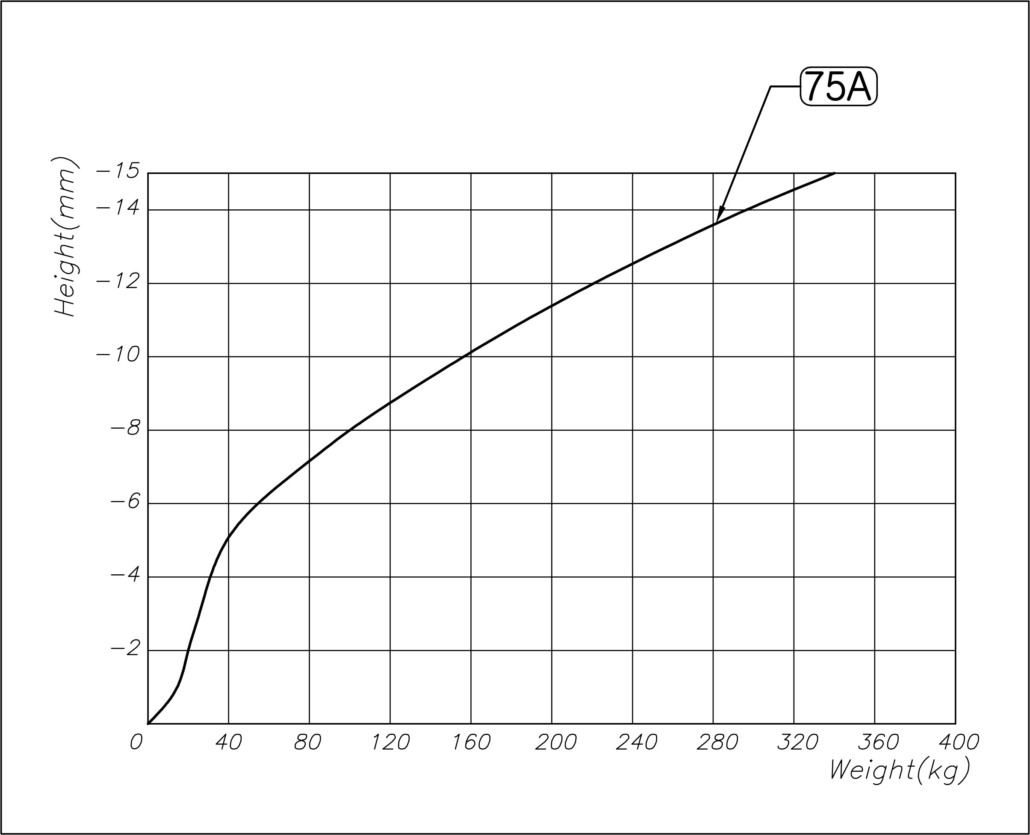

For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is just over 10mm.
Ball bearing
10mm
Fabricated Steel
Swivel
With Brake
Wheel Brake
Medium
105x80mm
4-Hole Plate Fixing
450kg
253-15mm
140x110mm
200mm
Polyurethane Tyre
48mm
Polyurethane Tyre / Aluminum Centre
Available shipping methods for this product:
*Applicable for delivery in the United Kingdom excluding Northern Ireland, Scottish Highlands and the Channel Islands where additional charges apply.
200mm Shock absorbing (15mm Compression) fixed ... Read Morecastor with Brake and Polyurethane Tyre on an Aluminium Centre Wheel. Load Capacity = 450kg
For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment.
For a typical example, with a trolley or machinery using 4 of these castors please divide the total weight by 3. If the total weight being carried is 500kg then the relevant reading for the compression of the rubber pad on the chart's 'Y' axis is given at 167kg (500kg / 3 = 167kg) along the 'X' axis, which is just over 10mm.
200mm Shock absorbing (15mm Compression) fixed ... Read Morecastor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 450kg
For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg which is just over 10mm.
200mm Shock absorbing (15mm Compression) Swivel... Read More castor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 450kg
