100mm Shock Absorbing Fixed Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075RF)

Related products

•

  • Description
  • Specifications

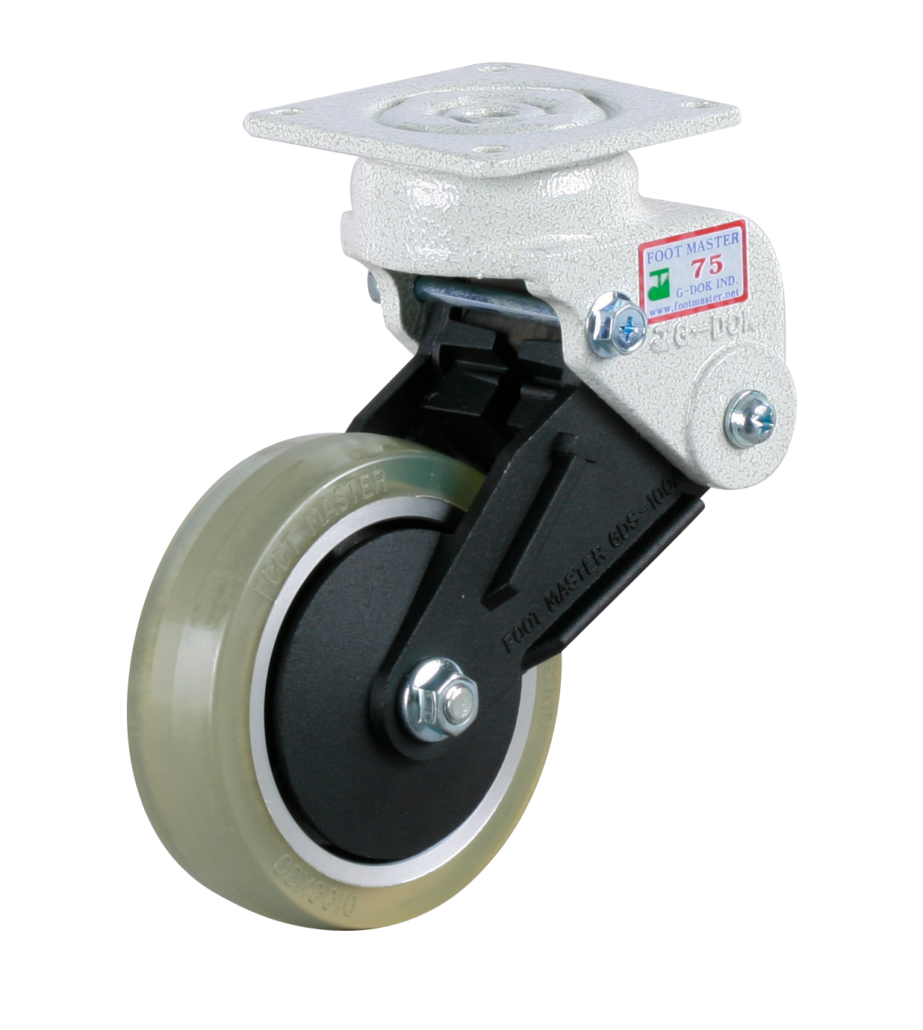

  100mm Shock Absorbing Swivel Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDS10075SF)

  ... Read More-variant-east-asian: normal; font-size: 14px;">100mm Shock Absorbing Swivel Castor with 78mm x 78mm 4-hole Top Plate with 58mm x 58mm Bolt Hole spacings each fixing hole drilled to 7mm, The Polyurethane tyre on Aluminium Centre is fitted with precision ball bearings, This caster has a load capacity of 100kg.

  The shock absorbing function of this castor means that the overall height can vary by 20mm. The casters height without load is 160mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve) and fully compressed with a load of 75kg. Furthermore, the castor's offset will also vary from 45mm (at its full height of 160mm) to 53mm as the load increases.

  £82.93 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  M6 x 25mm High Tensile Steel Bolt, Nut & Washer Set (BOLTSETM6X25)

  4 pack of M6 x 25mm High Tensile Steel Bolt, Nut (... Read Morenyloc), and Washer sets to fix your castors to your equipment.  Nyloc Nuts contain a nylon insert that grips onto the bolt and prevents the nut from loosening due to the vibration that occurs when the castor wheel is moving. The pack contains:

  • (Qty 4) M6 x 25mm Threaded Bolts Grade 8.8 Hex Set finished in Bright Zinc Plate (BZP).
  • (Qty 4) M6 Nylon Insert (Nyloc) Nuts (8mm Height) with BZP finish.
  • (Qty 4) M6 Washers (12mm outside diameter, 6.4mm inside diameter, 1.8mm thick) with BZP finish.

  £1.68 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  100mm Shock Absorbing Fixed Castor, 100kg Capacity | Polyurethane Tyre Wheel (GDSB100ARFLUD75)

  ... Read More-variant-east-asian: normal; font-size: 14px;">100mm Shock Absorbing Fixed Castor, Polyurethane tyre wheel with an Aluminium Centre and precision ball bearings, The polyurethane tyre has a shore hardness of A90 and the Load Capacity of the castor is 100kg.

  The Overall height without a load is 171mm and this reduces incrementally by up to 20mm as load increases (see image 2 - GDS100 Curve). It is fully compressed with a load of 75kg.

  £77.60 Compare

  In Stock

  Qty

  Add To Basket
