Description

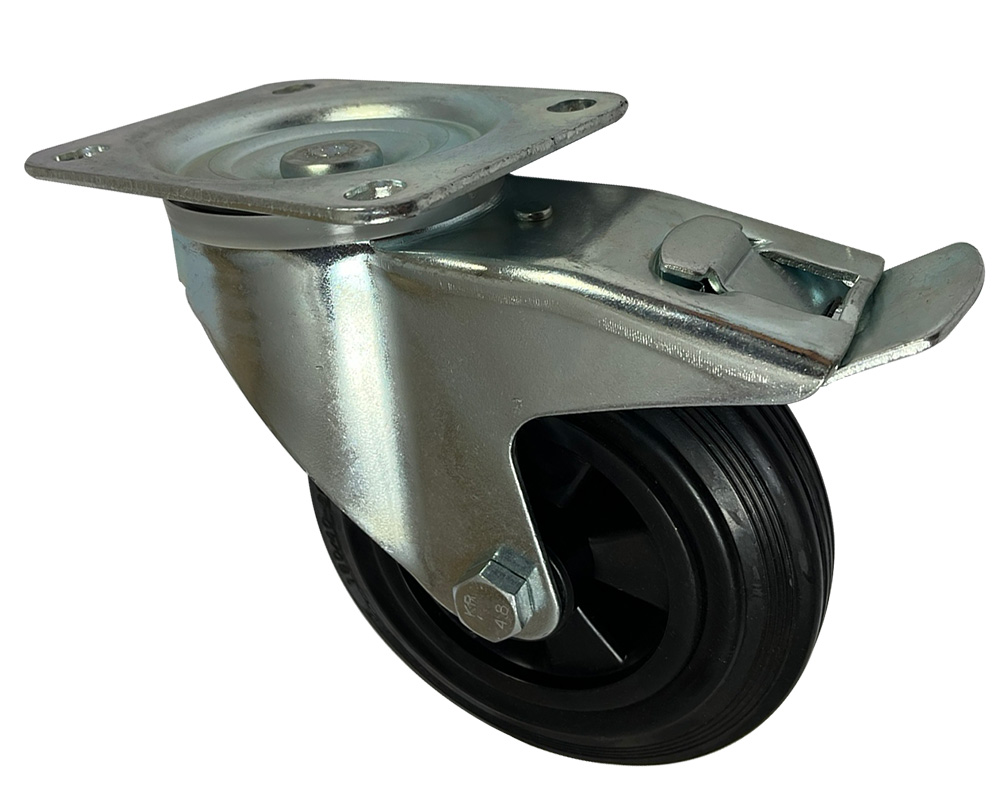

160mm Top Plate Swivel Castor with Swivel & Wheel Brake (Pressed Steel). The castor wheel has a Black Rubber Tyre on a Black Polypropylene (Plastic) Centre Wheel with Roller Bearing. The Load Capacity is 135kg using manual propulsion at 4km/h.
Key Specifications:
- Plate Size: 135X110mm
- Bolt Hole Centres: 105×80/75mm
- Bolt Hole Size: 11mm (suits 10mm fixing bolts)
- Overall height: 196mm
- Offset: 55mm
- Swivel Radius: 165mm
- Bearing Type: Roller Bearing
- Brake Type: Swivel & Wheel Brake (also known as a Total Stop Brake because it locks both the swivel action and wheel when applied)
