£1,099.54Inc VAT £1,319.45
Recommended Max. Load over 4 Castors = 8850kg : 3 x Load Capacity of Castor (2950kg)

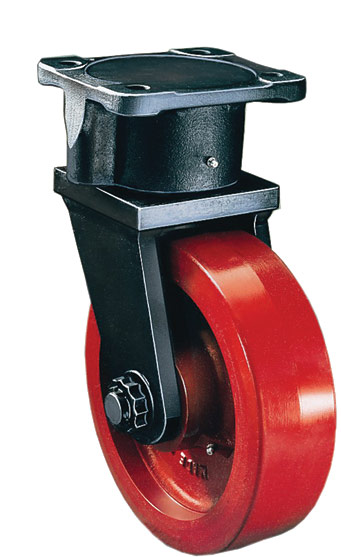

Extra Heavy Duty Swivel Castor with 250mm Polyurethane Tyre Cast Iron wheel on taper roller bearings. The swivel head contains double taper roller bearings which means it is suited to very heavy applications and with a grease nipple in the swivel head enables re-greasing. The bracket is fabricated forge steel and coated with a black electrostatic finish. The load capacity of this castor is 2,950kg and is suitable for power towing,
The castor has an overall height of 368mm and the top plate measures 178mm x 153mm with bolt hole centres of 127mm x 102mm that are suitable for 16mm bolts, This swivel radius of the castor is 197mm. This measure is the radius of the circle the outer dimension of the wheel would make when swivelling in a stationary position.
Available shipping methods for this product:
*Applicable for delivery in the United Kingdom excluding Northern Ireland, Scottish Highlands and the Channel Islands where additional charges apply.
Please Login To Download Attachment
Extra Heavy Duty Swivel Castor with 250mm Polyu... Read Morerethane Tyre Cast Iron wheel on taper roller bearings. The bracket is fabricated forge steel and coated with a black electrostatic finish. The load capacity of this castor is 2,950kg and is suitable for power towing,
The castor has an overall height of 368mm and the top plate measures 178mm x 153mm with bolt hole centres of 127mm x 102mm that are suitable for 16mm bolts.
