Description

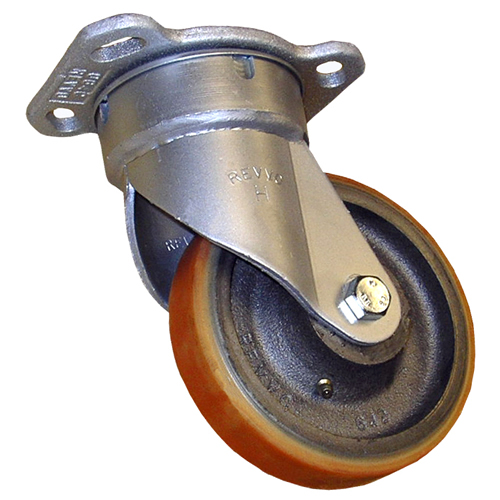

150mm Heavy Duty Top Plate Swivel Castor (Fabricated Castor) with 105×80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 730kg
The Bolt Holes of the H series castor are slotted to 120x60mm and 105×80/75mm.
- Use 12mm diameter bolts when fitting at 120 x 60mm
- Use 10mm diameter bolts when fitting at 105×80/75mm
Features of the H Series Castor
- The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
- The swivel head comes with a metal swivel seal and hydraulic grease nipple
- The closed base of the swivel ring prevents downward escape of lubricant
- The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
- A four way direction lock can be purchased and fitted to the castor 9999-0181
