Description

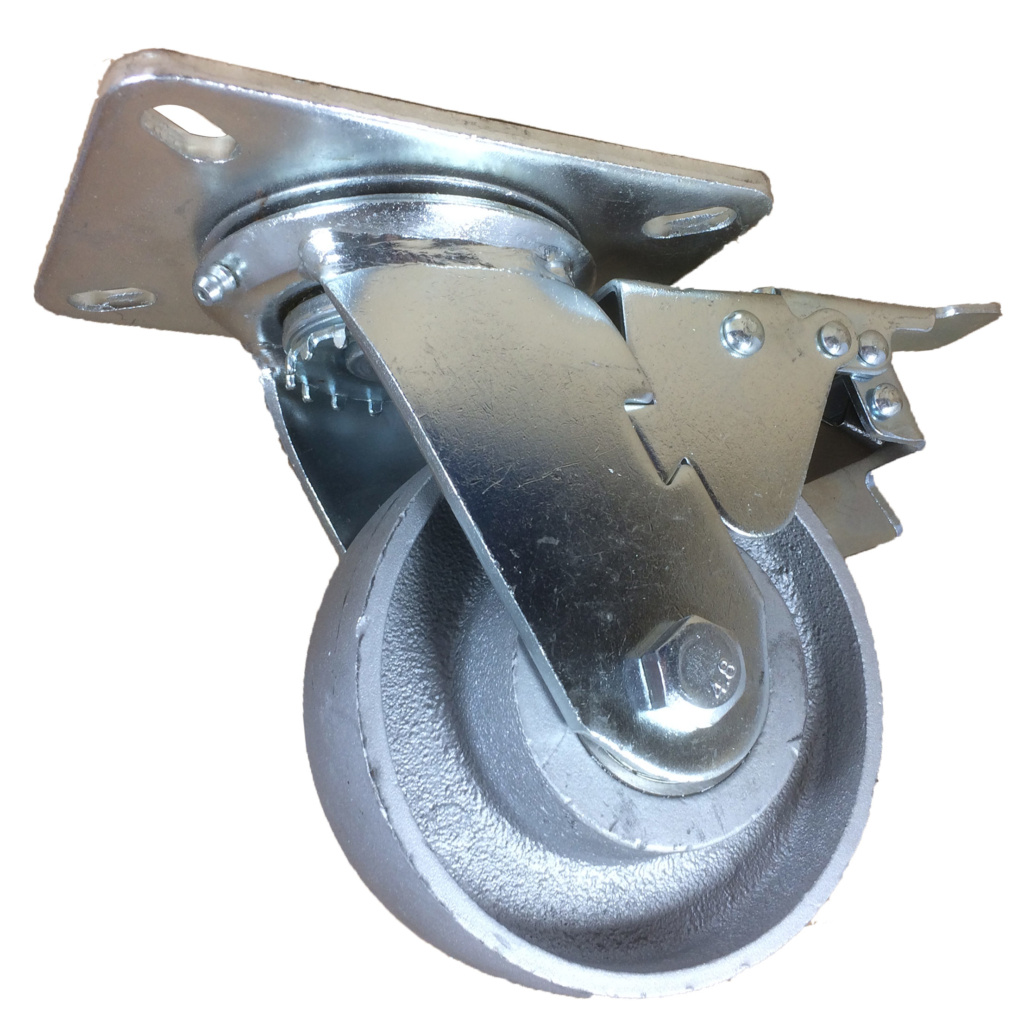

125mm Top Plate Swivel Castor with Brake (Fabricated Steel) with 105x80mm Fixing Bolt Hole Centres. Cast Iron Wheel with Ball Bearings. Load Capacity = 350kg
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Brake Style: Swivel & Wheel Brake (also known as a Total Stop Brake). Locks the wheel and swivel rotation when applied.
- Overall Height: 165mm
- Offset: 39mm
- Swivel Radius: 147mm
- Bearing Type: Ball Bearing
- Load Capacity: 350kg (manual propulsion at 4km/h)
- Cast iron castor wheels have a very hard tread making them the easiest of wheels to move (low tractive resistance). They have a very high load capacity, extremely wear resistant and not affected by swarf or aggressive materials.
