Description

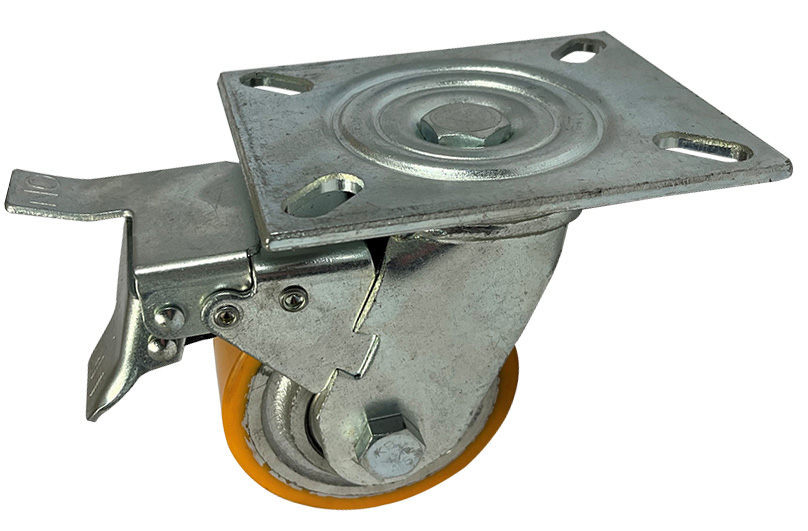

100mm Top Plate Swivel Castor with Brake (Fabricated Steel) with 105x80mm Hole Centres. This castor has a high quality Polyurethane Tyre on a Cast Iron Centre Wheel with Ball Bearings. Load Capacity = 350kg using manual propulsion at 4km/h (walking speed).
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Brake Style: Swivel & Wheel Brake (also known as a Total Stop Brake). Locks the wheel and swivel rotation when applied.
- Overall Height: 143mm
- Offset: 35mm
- Swivel Radius: 138mm
- Tread Hardness: 92 +/-3 Shore A
- Bearing Type: Ball Bearing
- Load Capacity: 350kg (manual propulsion at 4km/h)
- Polyurethane tyre castor wheels offer high load capacity and exceptional wear resistance—lasting up to 10 times longer than rubber wheels under similar conditions. With a soft tread that’s softer than concrete, they won’t damage floors and operate with minimal noise. Resistant to oils, greases, petrol, and a wide range of chemicals, they’re ideal for demanding environments.
