Description

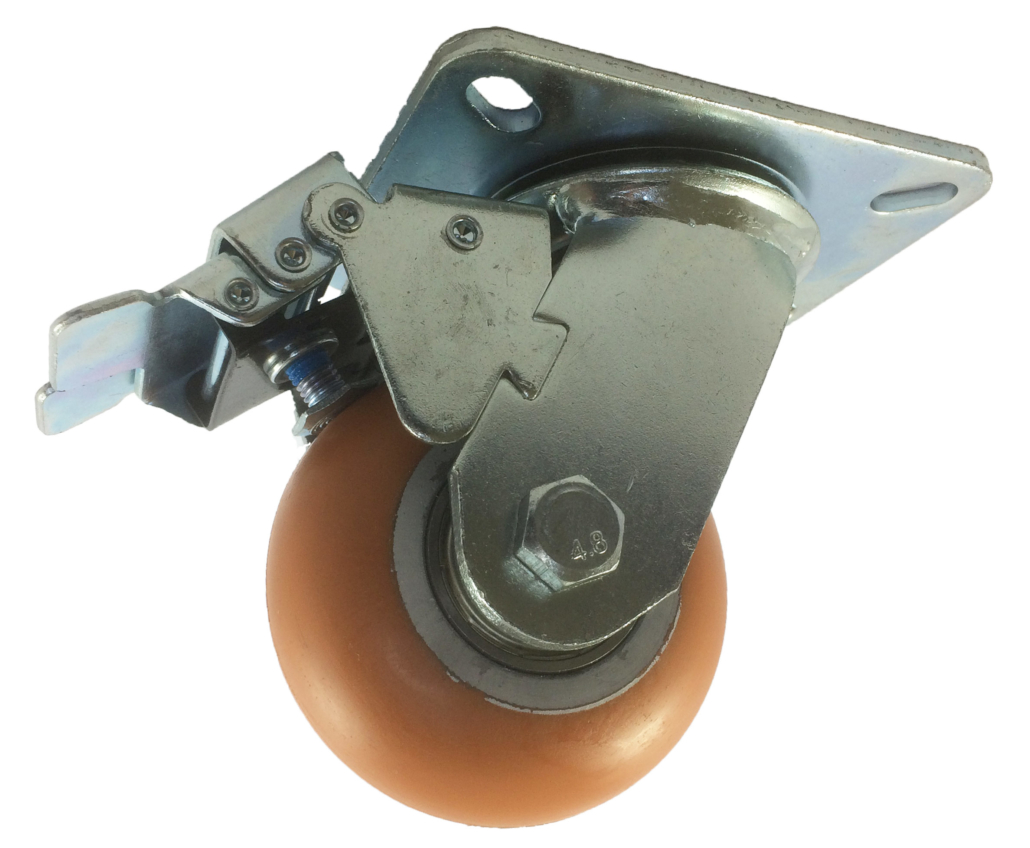

100mm Swivel Castor (Fabricated Steel) with a Swivel & Wheel brake. The top plate has 4 fixing holes with 105X80mm bolt hole centres. This castor comes with a Crown Tread Polyurethane Tyre on a cast iron centre wheel complete with Ball Bearing. Load Capacity = 300kg using manual propulsion at 4km/h (walking speed).
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Brake Style: Swivel & Wheel Brake (also known as a Total Stop Brake). Locks the wheel and swivel rotation when applied.
- Fixing Bolt Size: 12mm
- Overall Height: 143mm
- Offset: 35mm
- Swivel Radius: 138mm
- Tread Hardness: 92 +/-3 Shore A
- Bearing Type: Ball Bearing
- Load Capacity: 300kg (manual propulsion at 4km/h)
- Crowned Tread for easy manoeuvrability
