Description

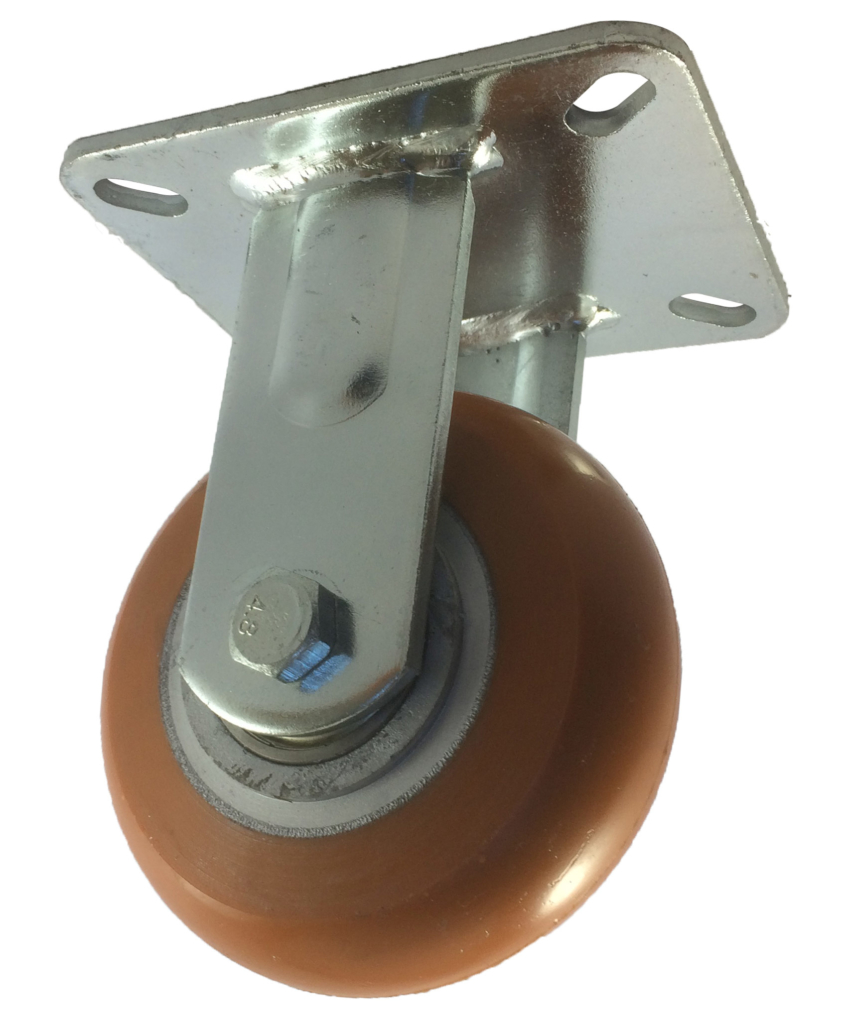

125mm Fixed Castor (Fabricated Steel) with 105x80mm Fixing Bolt Hole Centres. The wheel has a Crown Tread Polyurethane Tyred on Cast Iron Centre Wheel with Ball Bearings. Load Capacity = 350kg
Fixed Castors are sometimes referred to as Rigid Castors because the bracket [frame] does not have any moving parts.
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Overall Height: 165mm
- Bearing Type: Ball Bearing
- Tread Hardness: 92 +/-3 Shore A
- Load Capacity: 350kg (manual propulsion at 4km/h)
- Crowned Polyurethane Tread for easy manoeuvrability.
