Description

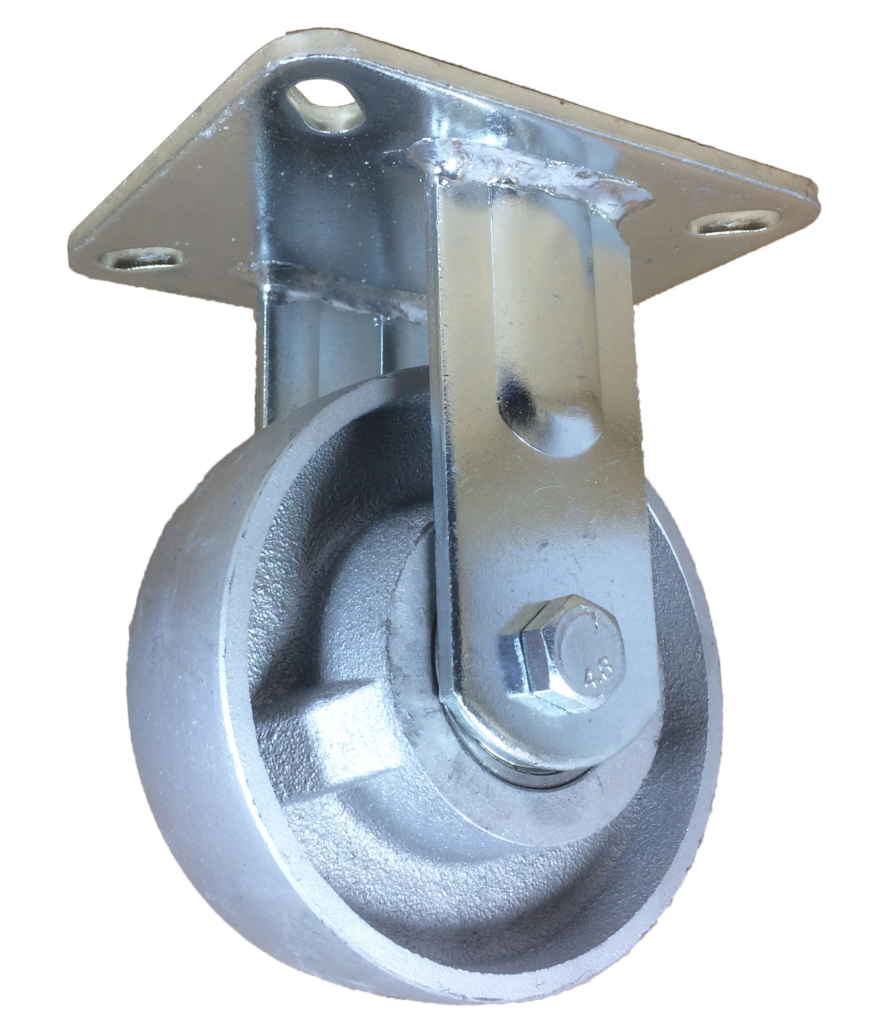

125mm Top Plate Fixed Castor (Fabricated Steel) with 105x80mm Fixing Bolt Hole Centres. Cast Iron Wheel with Ball Bearings. Load Capacity = 350kg
Fixed Castors are sometimes referred to as Rigid castors because there are no moving parts in the Bracket [Frame].
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Overall Height: 165mm
- Bearing Type: Ball Bearing
- Load Capacity: 350kg (manual propulsion at 4km/h)
- Cast iron castor wheels have a very hard tread making them the easiest of wheels to move (low tractive resistance). They have a very high load capacity, extremely wear resistant and not affected by swarf or aggressive materials.
