Description

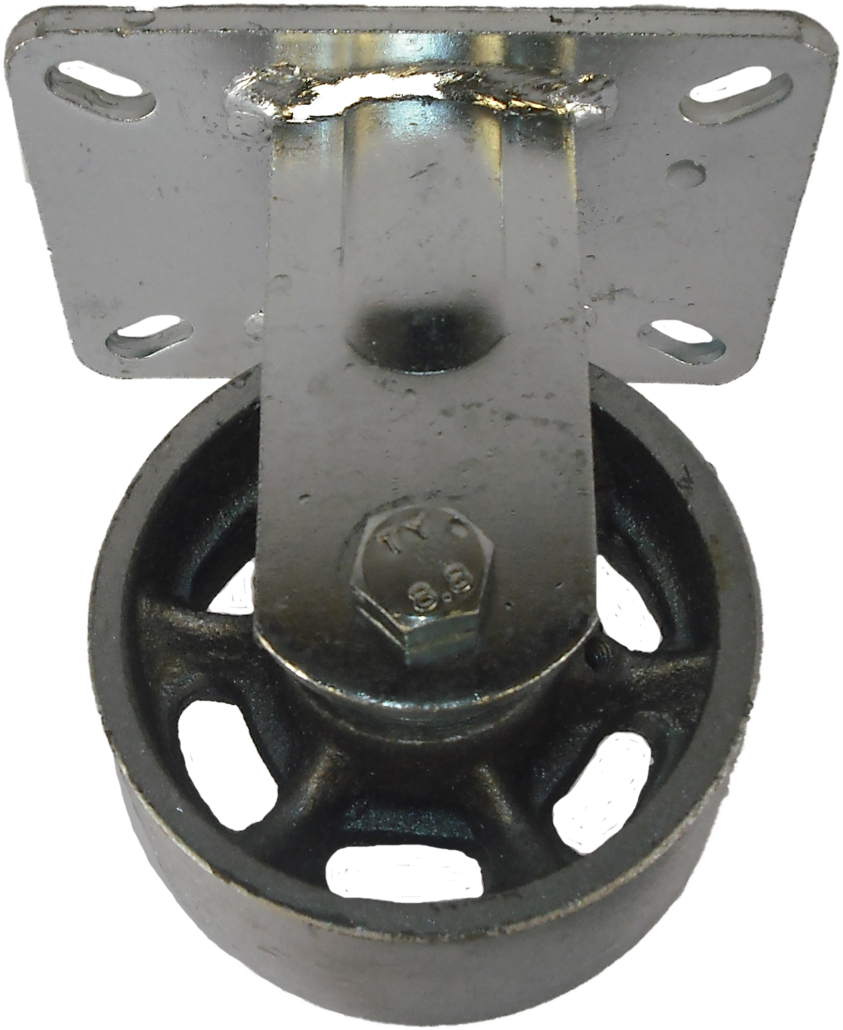

100mm Top Plate Fixed Castor (Fabricated Steel) with 105x80mm Bolt Hole Centres. The wheel is a solid Cast Iron Wheel with a Needle Roller Bearing. Load Capacity = 300kg using manual propulsion at 4km/h (walking speed).
Fixed castors are often called Rigid castors because the bracket or frame has no moving parts
Key Specifications and Features:
- Top Plate Size: 140x110mm
- Bolt Hole Centres: Slotted 114x87mm / 97.5×71.5mm
- Fixing Bolt Size: 12mm
- Overall Height: 143mm
- Bearing Type: Roller Bearing
- Load Capacity: 300kg (manual propulsion at 4km/h)
- Cast iron castor wheels have a very hard tread making them the easiest of wheels to move (low tractive resistance). They have a very high load capacity, extremely wear resistant and not affected by swarf or aggressive materials.
