Swivel Castors
Swivel Castors and wheels can swivel 360 degrees about the vertical axis (see figure below). They consist of a housing and a caster wheel. The housing itself is made up of a plate fitting, swivel bearings and a yoke. The Yoke is often referred to as the castor's frame (see figure below).The plate fitting determines how the... castor is going to be attached to the equipment. It is usually either a single bolt hole fitting or a plate fixing which is generally square, rectangular or triangular. Plate fittings are usually bolted to equipment so knowing your required bolt hole centres is important. The Swivel Head consists of a ball race and a number of ball bearings that roll within it. Swivel Castors can either have a single ball race or a double ball race. They perform the same function. The double ball race was developed for medium and heavy applications. This is because they are compact, perform well under static and dynamic loads and provide excellent steerability.
Swivel castors can be fitting with locks which lock (brake) wither the wheel or the swivel head or both. See Brake Castors.
Swivel Castor Components
Swivel Castor Offset
The Swivel Castor's offset it the distance from the swivel axis to the centre of the wheel (where it is secured to the castor frame). It is the reason a swivel castor will go in the direction you want it to go regardless its starting direction. The offset and castor wheel's diameter make up the swivel radius where the swivel radius = Offset + (Wheel Diameter / 2).
This is the radius of circle described but the outer dimension of the wheel swivelling around the vertical axis. Basically, this is important because it tells you how much room is needed for the swivel caster to swivel. Furthermore, the general rule is the bigger the offset the better the castor's running performance but the lower the weight it can carry. Read More
- Display 30 Products per page
In Stock160mm Swivel Castor, 350kg Capacity | Black Rubber Tyre wheel, Ball bearing (MSK160EA2B)
£41.99160mm Top Plate Swivel Castor (Heavy Duty Pressed ... Read MoreSteel) with 105x80mm Fixing Bolt Hole Centres. Black Elastic Rubber Tyre on an Aluminium Centre Wheel with Ball Bearings. Load Capacity = 350kg.Elastic Rubber Tyre Wheels are a great choice. In particular, where you need a tyre that can protect your floor, absorb rolling vibrations and reduce noise which increases operator's comfort.- In Stock
160mm Swivel Castor, 450kg Capacity | Nylon Wheel, Ball Bearing (KSMG160NYB)
£38.86160mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Nylon Wheel with Ball Bearing. Load Capacity = 450kg - In Stock
160mm Swivel Castor, 480kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (MSK160PN2B)
£35.60160mm Top Plate Swivel Castor (Pressed Steel) with... Read More 105x80mm Fixing Bolt Hole Centres. Red Polyurethane Tyre on a White Nylon Centre Wheel with Ball Bearings. Load Capacity = 480kg. - In Stock
160mm Swivel Castor, 500kg Capacity | Nylon Wheel, Ball Bearing (KS160NYBJ500)
£60.01160mm Swivel Castor (Heavy Duty Pressed Steel) wit... Read Moreh a 135mm x 110mm Top Plate with 105x80mm Fixing Hole spacings. The castor wheel is a Solid White Nylon Castor Wheel with two ball bearings. Load Capacity = 500kg - In Stock
160mm Swivel Castor, 500kg Capacity | Nylon Wheel, Ball Bearing (MSK160NY2B)
£30.05160mm Top Plate Swivel Castor (Pressed Steel) with... Read More 105x80mm Fixing Bolt Hole Centres. Nylon Wheel with Ball Bearings. Load Capacity = 500kg. - In Stock
160mm Swivel Castor, 500kg Capacity | Nylon Wheel, Plain Bore (MSK160NY)
£22.28160mm Top Plate Swivel Castor (Pressed Steel) with... Read More 105x80mm Fixing Bolt Hole Centres. Nylon Wheel with a Smooth Plain Bore. Load Capacity = 500kg. - In Stock
160mm Swivel Castor, 500kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (KSMG160PAB)
£54.68160mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Polyurethane Tyre / Aluminium Centre Wheel with Ball Bearing. Load Capacity = 500kg - In Stock
160mm Swivel Castor, 500kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (KSMG160PCB)
£76.04160mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 500kg - In Stock
160mm Swivel Castor, 600kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (MSK160PC2B)
Original price was: £70.91.£56.73Current price is: £56.73.Sale!160mm Top Plate Swivel Castor (Pressed Steel) with... Read More 105x80mm Fixing Bolt Hole Centres. Polyurethane Tyre on a Cast Iron Centre Castor Wheel with Ball Bearings. Load Capacity 600kg using manual propulsion at 4km/h.This castor is made from 4mm thick heavy gauge pressed steel. It is a product that is built to last and is great for arduous applications.The polyurethane elastomer wheel offers excellent elasticity, hardness and resistance to compression. This means that while it has a low rolling resistance it is also gentle on floors and absorbs some of the rolling vibration for user comfort and reduced noise. - In Stock
160mm Swivel Castor, 800kg Capacity | Polyurethane Tyre Wheel, Ball bearing (4670FTP160P63)
£106.08160mm Top Plate Swivel Castor (Pressed Steel) With... Read More 105X80mm Bolt Hole Centres. This very heavy duty castor houses an extremely strong Polyurethane Tyre Wheel on a Cast Iron Centre Wheel With Ball Bearing. Load Capacity = 800Kg - In Stock
175mm Swivel Castor (Powder Coated), 800kg Capacity | Polyurethane Tyre Wheel (KGHP175ASFMUD)
Original price was: £152.55.£88.44Current price is: £88.44.Sale!175mm Heavy-duty Swivel Castor with a Powder Coate... Read Mored Pressed Steel Bracket and a 225mm overall height. The caster wheel has a Blue Polyurethane Tyre (Shore A 95) on an Aluminium Centre with Ball BearingsFeatures:- 800kg Load Capacity: For the most demanding applications and heavy-duty loads.
- Silver/Grey Powder Coating: Making this the best looking heavy-duty industrial castor on the market. The powder-coating not only looks great but also provides corrosion protection which prolongs its optimal performance and keeps the castor looking good.
- Quality Ball Bearings: For the lowest rolling resistance to reduce the effort needed to move.
- Double Ball Bearing Race and hardened bearing Seats in the swivel head: For an optimum swivel rotation function and durability.
- Strong Pressed Steel Plate: The top plate measure 140x110mm with fixing bolt holes slotted to 105x80/75mm to suit 10mm bolts
- Precision Engineered: These castors have an incredibly smooth swivelling function with no "rock" to the swivel head and no sideways movement on the wheel for exceptional operating performance.
- In Stock
200mm Shock Absorbing Swivel Castor, 400kg Capacity | Polyurethane Tyre Wheel, Ball bearing (GSST200WSF)
Original price was: £603.79.£232.94Current price is: £232.94.Sale!200mm Shock absorbing Swivel Castor with 30mm comp... Read Moreression. 160x120mm Top Plate with 140/110x105/80mm slotted bolt holes. Polyurethane Tyre with an Aluminium Centre Wheel fitted with Ball Bearing.Power Towable:- Max Load at 10km/h = 500kg
- Max Load at 20km/h = 400kg
- Out of Stock - On the Way
200mm Shock Absorbing Swivel Castor, 450kg Capacity | Polyurethane Tyre Wheel, Ball bearing (KGDSP200ASFMUD)
Original price was: £139.05.£73.89Current price is: £73.89.Sale!200mm Shock absorbing (15mm Compression) Swivel... Read More castor and Polyurethane Tyred Aluminium Wheel. Load Capacity = 450kg
For the compression performance, please see the image for the curve by clicking on the thumbnail image above. To use this curve, please calculate the weight being carried by this castor and divide that by the one less than the number of castors on your equipment, So if you have a trolley using 4 of these castors and the total weight being carried is 500kg, then the compression of the rubber pad is the reading given on the y axis at 167kg (500kg / 3 = 167kg) which is just over 10mm.
- In Stock
200mm Stainless Steel Swivel Castor, 300kg Capacity | Nylon Wheel, Plain Bore (MSS200NY)
£44.67200mm Top Plate Swivel Castor (Stainless Steel Cas... Read Moretor) with 105x80 Hole Centres. Nylon Wheel with Plain Bore. Load Capacity = 300kg - In Stock
200mm Stainless Steel Swivel Castor, 300kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (MSS200PNB)
£64.70200mm Top Plate Swivel Castor (AISI 304 Stainless ... Read MoreSteel) with 105x80mm Fixing Bolt Hole Centres. The caster wheel has a Polyurethane Tyre (97 Shore A) on a Nylon Centre Wheel with Roller Bearing. Load Capacity = 300kg - In Stock
200mm Swivel Castor (Powder Coated), 900kg Capacity | Polyurethane Tyre Wheel (KGHP200ASFMUD)
Original price was: £171.85.£99.62Current price is: £99.62.Sale!200mm Heavy-duty Swivel Castor with a Powder Coate... Read Mored Pressed Steel Bracket and a 250mm overall height. The caster wheel has a Blue Polyurethane Tyre (Shore A 95) on an Aluminium Centre with Ball BearingsFeatures:- 900kg Load Capacity: For the most demanding applications and heavy-duty loads.
- Silver/Grey Powder Coating: Making this the best looking heavy-duty industrial castor on the market. The powder-coating not only looks great but also provides corrosion protection which prolongs its optimal performance and keeps the castor looking good.
- Quality Ball Bearings: For the lowest rolling resistance to reduce the effort needed to move.
- Double Ball Bearing Race and hardened bearing Seats in the swivel head: For an optimum swivel rotation function and durability.
- Strong Pressed Steel Plate: The top plate measure 140x110mm with fixing bolt holes slotted to 105x80/75mm to suit 10mm bolts
- Precision Engineered: These castors have an incredibly smooth swivelling function with no "rock" to the swivel head and no sideways movement on the wheel for exceptional operating performance.
- In Stock
200mm Swivel Castor, 1000kg Capacity | Cast Iron Wheel, Ball bearing (HKS20020441)
£89.75200mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Cast Iron Wheel with Ball bearing. Load Capacity = 1000kg - In Stock
200mm Swivel Castor, 1000kg Capacity | Nylon Wheel, Ball bearing (HKS20020111)
£117.90200mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Nylon Wheel with Ball bearing. Load Capacity = 1000kg - In Stock
200mm Swivel Castor, 1000kg Capacity | Polyurethane Tyre Wheel, Ball bearing (HKS20020241)
£137.90200mm Top Plate Swivel Castor (Fabricated Steel) w... Read Moreith 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball bearing. Load Capacity = 1000kg - In Stock
200mm Swivel Castor, 100kg Load Capacity | Puncture Proof Wheel, Roller Bearing (KS200EVA)
£44.04200mm Puncture Proof Swivel Castor (Pressed Steel ... Read MoreBracket) with 137x105mm Top Plate dimensions and 105x80mm Fixing Bolt Hole. The wheel is a 200mm Rib Tread Puncture Proof Wheel on a black polypropylene centre with 50mm Tread with and a needle roller bearing. 100kg Load Capacity.The Caster wheel's tyre is made from microcellular polyurethane with a 65 Shore A hardness. - In Stock
200mm Swivel Castor, 1045kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (855SUB)
£154.22200mm Top Plate Swivel Castor with 140x105mm Bolt ... Read MoreHole Centres each suiting an M10 fixing bolt. The heavy duty bracket has a swivel head containing roller ball bearings and has a grease nipple. The pressed steel frame has a bright zinc finish. This castor houses a quality Flexello Polyurethane Tyre Wheel on a Cast Iron Centre has a Roller Bearing fitted into the central bore to reducing rolling resistance. The Load Capacity of this castor is 1045kg. - In Stock
200mm Swivel Castor, 1090kg Capacity | Cast Iron Wheel, Roller Bearing (855CIB)
£101.91200mm Top Plate Swivel Castor with 140x105mm Bolt ... Read MoreHole Centres each suiting an M10 fixing bolt. The heavy duty bracket has a swivel head with roller ball bearings and has a grease nipple. The pressed steel frame has a bright zinc finish. This castor houses a quality Flexello Cast Iron Wheel that has a Roller Bearing fitted into the central bore to reducing rolling resistance. The Load Capacity of this castor is 1090kg. - In Stock
200mm Swivel Castor, 1100kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (TSH200PT2H)
£184.35200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm Bolt Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Ball Bearing. Load Capacity = 1100kgThe Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm.- Use 12mm diameter bolts when fitting at 120 x 60mm
- Use 10mm diameter bolts when fitting at 105x80/75mm
- The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
- The swivel head comes with a metal swivel seal and hydraulic grease nipple
- The closed base of the swivel ring prevents downward escape of lubricant
- The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
- A four way direction lock can be purchased and fitted to the castor 9999-0181
- In Stock
200mm Swivel Castor, 1100kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (TSH200PT15)
£157.82200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm Bolt Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 1100kgThe Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm.- Use 12mm diameter bolts when fitting at 120 x 60mm
- Use 10mm diameter bolts when fitting at 105x80/75mm
- The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
- The swivel head comes with a metal swivel seal and hydraulic grease nipple
- The closed base of the swivel ring prevents downward escape of lubricant
- The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
- A four way direction lock can be purchased and fitted to the castor 9999-0181
- In Stock
200mm Swivel Castor, 1150kg Capacity | Cast Iron Wheel, Roller Bearing (TSH200CI15)
£102.71200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor) with 105x80mm Fixing Bolt Hole Centres. Cast Iron Wheel with Roller Bearing. Load Capacity = 1150kg.The Bolt Holes of the H series castor are slotted to 120x60mm and 105x80/75mm.- Use 12mm diameter bolts when fitting at 120 x 60mm
- Use 10mm diameter bolts when fitting at 105x80/75mm
- The Genuine Revvo H Series castor is made from heavy gauge forged steel
- The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
- In Stock
200mm Swivel Castor, 1400kg Capacity | Polyurethane Tyre Wheel, ball Bearing (2HKS20020241)
£251.38200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor - Twin Wheel). The Top Plate measures 149x110mm with 105x80mm Fixing Hole Centres. A grease nipple is fitted to the swivel head to enable easy maintenance. The load capacity of this dual wheel castor is 1400kg.The Wheel has a Polyurethane Tyre (92 Shore A) on a Cast Iron Centre Wheel with Ball Bearings. The polyurethane tyre is abrasion resistant with a low rolling resistance. The elasticity of the polyurethane allows the wheel absorb some of the rolling vibrations. This provides the user with a smoother and quieter operation yet is gentler on concrete floors compared to hard treads such as Cast Iron. - In Stock
200mm Swivel Castor, 1400kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (2HKSE20020241)
£251.38200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor - Twin Wheel). The Top Plate measures 149x110mm with 105x80mm Fixing Hole Centres. A grease nipple is fitted to the swivel head to enable easy maintenance. The load capacity of this dual wheel castor is 1400kg.This castor has directional lock slots in the swivel head to enable the attachment of a retro fit directional lock (HKDL).The overall height of this castor is 283mm.The Wheel has a Polyurethane Tyre (92 Shore A) on a Cast Iron Centre Wheel with Ball Bearings. The polyurethane tyre is abrasion resistant with a low rolling resistance. The elasticity of the polyurethane allows the wheel absorb some of the rolling vibrations. This provides the user with a smoother and quieter operation yet is gentler on concrete floors compared to hard treads such as Cast Iron. - In Stock
200mm Swivel Castor, 1500kg Capacity | Nylon Wheel, Ball Bearing (TSH200NY2H)
£144.43200mm Heavy Duty Top Plate Swivel Castor (Fabri... Read Morecated Castor) with 105x80 Hole Centres. Nylon Wheel with Ball Bearing. Load Capacity = 1500kg
Features of the H Series Castor
- The Genuine Revvo H Series castor is made from heavy gauge forged steel with a hardened ball race in the swivel race that serve as both thrust and radial bearings.
- The swivel head comes with a metal swivel seal and hydraulic grease nipple
- The closed base of the swivel ring prevents downward escape of lubricant
- The side plates are press formed to a cylindrical shape to give the best strength to weight ratio
- A four way direction lock can be purchased and fitted to the castor 9999-0181
- In Stock
200mm Swivel Castor, 1500kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (2SH200PT2H)
£392.83200mm Twin Wheeled Swivel Castor containing two Po... Read Morelyurethane Tyred wheels on cast iron centres running on Ball Bearings. The swivel bracket has a flat top plate and has four fixing holes with 105x80mm bolt hole spacing. The maximum load capacity of this castor is 1500kg. - In Stock

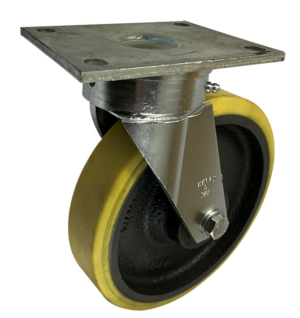

200mm Swivel Castor, 1500kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (2SH200PT15)
£307.52200mm Heavy Duty Top Plate Swivel Castor (Fabricat... Read Moreed Castor - Twin Wheel) with 105x80 Hole Centres. Polyurethane Tyre / Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 1500kg
