Pressed Steel Castors
Pressed steel castors are used in a wide variety of applications such as trolleys, shop-fitting equipment, displays, institutional and apparatus equipment as medical applications. They are available as Swivel Only, Swivel & Brake or Fixed (sometime called Rigid) castors.The forks of the castor, which are the two side p...lates that hold the wheel, are formed by machine pressing a single piece of steel.
They can be secured to your equipment by either a multiple hole (usually 4 Hole) Top Plate fastening or a single Bolt Hole Fitting which can be fitted with an expander fitting to suit a hollow tube.
The swivelling characteristics of pressed steel castors are affected by the castor's offset and wheel diameter. Furthermore, the construction of the swivel bearing also plays a part.
- A single ball race swivel castor is suitable for apparatus and transportation (e.g. trolleys) and enable good steering with a compact design.
- A double ball race swivel castor is available for medium and heavy duty requirements and it provides excellent performance under heavier loads as compared with a single ball race.

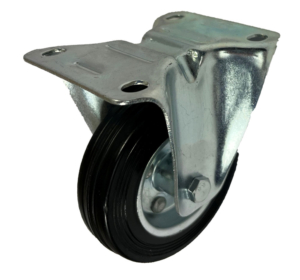

In Stock100mm Fixed Castor, 70kg Capacity | Rubber Tyre Wheel, Roller Bearing (LFV100RMB)
£6.00 Compare100mm Top Plate Fixed Castor with a Black Rubber T... Read Moreyre Wheel on a Pressed Steel centre complete with Thread Guards. It has 80x60mm bolt hole centres and a load capacity of 70kg using manual propulsion at 4km/h.This popular general purpose castor is fitted with a Black Rubber Tyre Wheel that is gentle on floors. The Caster wheel has a roller bearing that offers low rolling resistance. It is ideal as a new or replacement castor for most domestic or industrial applications such as a trolley or dolly where the travel speed of the castor generally does not exceed walking speed.Qty- In Stock
100mm Fixed Castor, 75kg Capacity | Rubber Tyre Wheel, Roller Bearing (MFV100BRP1B)
£4.83 Compare100mm Black Rubber Tyre wheel on a plastic centre ... Read Morewith a roller bearing fitted into a pressed steel Fixed castor bracket. The Fixed Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 75kg using manual propulsion at 4km/h (walking speed)The Black Rubber Tyre is softer wheel compared to hard tread wheels like nylon and the rubber absorbs vibrations whilst in motion making this a low noise option and will not scratch the floor. The roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket makes this castors a great choice for many industrial or domestic applications.The wheel might leave marks on the floor and if you want a non-marking version of this castor please order our MFV100GRP1BQty - In Stock
100mm Fixed Castor, 75kg Capacity | Rubber Tyre Wheel, Roller Bearing (MFV100GRP1B)
£5.58 Compare100mm Grey Rubber Tyre wheel on a plastic centre w... Read Moreith a roller bearing fitted into a pressed steel Fixed castor bracket. The Fixed Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 75kg using manual propulsion at 4km/h (walking speed)The Grey Rubber Tyre is non-marking and has a softer wheel compared to hard tread wheels like nylon. The rubber absorbs vibrations whilst in motion making this a low noise option and will not mark or scratch the floor. The roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket makes this castor a great choice for many industrial or domestic applications.Qty - In Stock
100mm Heavy Duty Fixed Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HFV100NY2B)
£16.46 Compare100mm Heavy Duty Top Plate Fixed Castor with Heavy... Read More Gauge Pressed Steel and a load capacity of 500kg. The swivel head has a double ball race with hardened ball race track.- The Top Plate measure 100x88mm with 80x60mm Fixing Bolt Hole Centres. The bolt holes are slotted to 80/75x60/55mm and suits 8mm Bolts.
- The castor wheel is a white nylon wheel (polyamide) with a 37mm tread width and fitted with two precision ball bearings. The hard wheel is non-marking and has the lowest rolling and swivel resistance.
- This castor is an excellent all purpose heavy duty castor. It is often used with high load mobile storage and transportation equipment in domestic, mechanical and industrial applications.
Qty - In Stock
100mm Heavy Duty Swivel Brake Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HSV100NY2BBR)
£31.01 Compare100mm Heavy Duty Top Plate Swivel and Brake Castor... Read More with Heavy Gauge Pressed Steel and a load capacity of 500kg. The swivel head has a double ball race with hardened ball race track.The brake is a Total Stop Brake which is also known as a Swivel and Wheel Brake. This type of brake locks both the wheel and the swivel head so that the swivel head will not rotate while the brake is applied.The Top Plate measure 105x80mm with 80x60mm Fixing Bolt Hole Centres. The bolt holes are slotted to 80/75x60/55mm and suits 8mm Bolts.The castor wheel is a white nylon wheel (polyamide) with a 37mm tread width and fitted with two precision ball bearings. The hard wheel is non-marking and has the lowest rolling and swivel resistance.This castor is an excellent all purpose heavy duty castor. It is often used with high load mobile storage and transportation equipment in domestic, mechanical and industrial applications.Download HDV Series Datasheet HereQty - In Stock
100mm Heavy Duty Swivel Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HSV100NY2B)
£27.06 CompareThis 100mm heavy-duty swivel castor is designed fo... Read Morer demanding applications in both industrial and domestic settings. Featuring a top plate made from heavy gauge pressed steel, it offers exceptional durability and strength. The swivel head includes a double ball race with a hardened ball race track, ensuring smooth and reliable movement.Key Features:- Load Capacity: Supports up to 500kg, making it ideal for heavy loads.
- Top Plate Dimensions: Measures 105x80mm, with fixing bolt hole centres at 80x60mm. The slotted bolt holes (80/75×60/55mm) accommodate 8mm bolts for easy installation.
- Wheel Material: The castor features a white nylon (polyamide) wheel with a 37mm tread width, designed to provide non-marking performance.
- Precision Bearings: Fitted with two precision ball bearings, this castor offers the lowest rolling and swivel resistance in its class, ensuring effortless movement even under heavy loads.
Qty - Out of Stock - On the Way
100mm LAG Fixed Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (23678)
£37.36 Compare100mm Top Plate Fixed Castor (LAG Pressed Steel) w... Read Moreith a Top Plate measuring 105x80mm and 80x60mm Fixing Bolt Hole Centres. This caster has an overall height of 137mm and the wheel is a quality Polyurethane Tyre on Cast Iron Centre Wheel with a 30mm Tread Width and Ball Bearings. Load Capacity = 300kg - In Stock
100mm LAG Swivel Castor with Brake, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (23603FR)
£60.71 Compare100mm Top Plate Swivel Castor with Total Stop Brak... Read Moree (LAG Pressed Steel) with a Top Plate measuring 105x80mm and 80x60mm Fixing Bolt Hole Centres. This caster has an overall height of 137mm and an offset of 37mm. The wheel is a quality Polyurethane Tyre on Cast Iron Centre Wheel with a 30mm Tread Width and Ball Bearings. Load Capacity = 300kgA Total Stop Brake means that when applied, both the wheel and swivel rotation is stopped.Qty - In Stock
100mm LAG Swivel Castor with Brake, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (23606)
£58.16 Compare100mm Top Plate Swivel Castor (LAG Pressed Steel... Read More) with a large Top Plate measuring 135 x 110mm and 105 x 80mm Fixing Bolt Hole Centres. This caster has an overall height of 137mm and an offset of 37mm. The wheel is a quality Polyurethane Tyre on Cast Iron Centre Wheel with a 40mm Tread Width and Ball Bearings. Load Capacity = 300kgQty - In Stock
100mm LAG Swivel Castor with Brake, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (23606FR)
£70.48 Compare100mm Top Plate Swivel Castor with Total Stop Brak... Read Moree (LAG Pressed Steel) with a large Top Plate measuring 135 x 110mm and 105 x 80mm Fixing Bolt Hole Centres. This caster has an overall height of 137mm and an offset of 37mm. The wheel is a quality Polyurethane Tyre on Cast Iron Centre Wheel with a 40mm Tread Width and Ball Bearings. Load Capacity = 300kgA Total Stop Brake means that when applied, both the wheel and swivel rotation is stopped.Qty - In Stock
100mm LAG Swivel Castor, 300kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (23603)
£48.38 Compare100mm Top Plate Swivel Castor (LAG Pressed Steel) ... Read Morewith a Top Plate measuring 105x80mm and 80x60mm Fixing Bolt Hole Centres. This caster has an overall height of 137mm and an offset of 37mm. The wheel is a quality Polyurethane Tyre on Cast Iron Centre Wheel with a 30mm Tread Width and Ball Bearings. Load Capacity = 300kgQty - In Stock
100mm Stainless Steel Fixed Castor, 370kg Capacity | Nylon Wheel, Ball Bearings (33675)
£54.65 Compare100mm Heavy Duty Top Plate Fixed (also kno... Read Morewn as Rigid) Castor and nylon wheel with ball bearings. The top plate and frames are made from AISI 304 Stainless Steel Castor. This castor has a 137mm overall height.Upgrade your equipment with our 100mm Heavy Duty Stainless Steel Swivel Castor, designed for superior performance in demanding environments. Ideal for both industrial and domestic applications, this castor is built to resist corrosion and heavy use.Key Features:- Load Capacity: Supports up to 370kg, making it ideal for heavy loads.
- Top Plate Dimensions: Measures 105x80mm, with fixing bolt hole centres at 80x60mm and accommodates 8mm bolts for easy installation.
- Wheel Material: The castor features a white nylon (polyamide) wheel with a 37mm tread width, designed to provide non-marking performance.
- Precision Bearings: Fitted with two precision ball bearings, this castor offers the lowest rolling and swivel resistance in its class, ensuring effortless movement even under heavy loads.
Qty - In Stock
100mm Stainless Steel Swivel Castor With Brake, 370kg Capacity | Nylon Wheel, Ball Bearings (33605FR)
£128.16 Compare100mm Heavy Duty Top Plate Swivel Castor with Tota... Read Morel Stop Brake and nylon wheel. The top plate and frames are made from AISI 304 Stainless Steel Castor and the Stainless Steel balls from AISI 420. This castor has a 137mm overall height.Upgrade your equipment with our 100mm Heavy Duty Stainless Steel Swivel Castor, designed for superior performance in demanding environments. Ideal for both industrial and domestic applications, this castor is built to resist corrosion and heavy use. Featuring a top plate made from heavy gauge Stainless Steel, it offers exceptional durability and strength. The swivel head includes a double ball race with a hardened ball race track, ensuring smooth and reliable movement.Key Features:- Load Capacity: Supports up to 370kg, making it ideal for heavy loads.
- Top Plate Dimensions: Measures 105x80mm, with fixing bolt hole centres at 80x60mm and accommodates 8mm bolts for easy installation.
- Wheel Material: The castor features a white nylon (polyamide) wheel with a 37mm tread width, designed to provide non-marking performance.
- Precision Bearings: Fitted with two precision ball bearings, this castor offers the lowest rolling and swivel resistance in its class, ensuring effortless movement even under heavy loads.
Qty - In Stock
100mm Stainless Steel Swivel Castor, 370kg Capacity | Nylon Wheel, Ball Bearings (33605)
£99.90 Compare100mm Heavy Duty Top Plate Swivel Castor and nylon... Read More wheel with ball bearings. The top plate and frames are made from AISI 304 Stainless Steel Castor and the Stainless Steel balls from AISI 420. This castor has a 137mm overall height.Upgrade your equipment with our 100mm Heavy Duty Stainless Steel Swivel Castor, designed for superior performance in demanding environments. Ideal for both industrial and domestic applications, this castor is built to resist corrosion and heavy use. The swivel head includes a double ball race with a hardened ball race track, ensuring smooth and reliable movement.Key Features:- Load Capacity: Supports up to 370kg, making it ideal for heavy loads.
- Top Plate Dimensions: Measures 105x80mm, with fixing bolt hole centres at 80x60mm and accommodates 8mm bolts for easy installation.
- Wheel Material: The castor features a white nylon (polyamide) wheel with a 37mm tread width, designed to provide non-marking performance.
- Precision Bearings: Fitted with two precision ball bearings, this castor offers the lowest rolling and swivel resistance in its class, ensuring effortless movement even under heavy loads.
Qty - In Stock
100mm Swivel and Brake Castor, 100kg Capacity | Rubber Tyre Wheel, Ball Bearing (KAHB100TPR)
£14.17 CompareThis apparatu... Read Mores / institutional castor comes with a 100mm Grey Thermoplastic Rubber Tyre Wheel on a polypropylene centre fitted into a 10mm Single Bolt Hole Swivel Castor with a total stop brake (Pressed Steel Frame) with a double ball race in the swivel head. A total stop brake brakes both the swivel head and the wheel. The load capacity of this castor is 100kg using manual propulsion at 4km/h
This castor is fitted with a grey Thermoplastic Rubber Tyre Wheel that will not mark or damage the floor and is ideal for most general castor purposes such as trolley castors or dolly castors. The Ball Bearing in the wheel provides excellent rolling performance.
Single Bolt Hole castors can have a expander tube fitting (purchased separately) attached to insert into hollow square or round tubing. See our section on Expander Tube Fittings
Qty
