Medium Duty Castors - Pressed Steel (101kg to 250kg Capacity)
Medium Duty Pressed Steel Castors have a load capacity between 101kg to 250kg Individual Castor Load Capacity.A castor's load capacity is usually the first criteria that needs to be identified. If you need to carry a total load (including the transport equipment) over 4 castors of between 300kg or and 750kg...>, these are the castors for you. You can read more about Recommended Load Capacity Considerations here.
Your next criteria is likely to be how you're going to attach the castors and there are two main choices. A rectangular Plate Fixing or a Single Bolt Hole Fitting.
Next comes the Castor and Wheels. Our medium duty pressed steel castors have complete. These include Nylon/Polypropylene, Blue Elastic Rubber Tyre, Polyurethane (both Injection Moulded or Bonded), Grey or Black Rubber Tyre, Cast Iron.
Some users have specific bearing requirements too. A Smooth Plain Bore is simply a smooth hole in the middle of the wheel and the lowest cost option. It's great if you're not carrying too much weight. Roller Bearing and Ball Bearings are available and these are necessary to lower the rolling resistance (the force needed to keep a wheel which is carrying weight moving) Read More
- Display 15 Products per page
- In Stock
125mm Fixed Castor, 250kg Capacity | Nylon Wheel, Ball Bearing (KF125NYB250)
£24.93125mm Top Plate Fixed Castor (Pressed Steel) with ... Read More80x60 Hole Centres. Nylon Wheel with Ball Bearing. Load Capacity = 250kg - In Stock

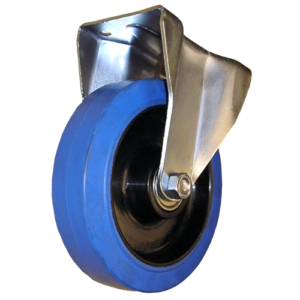

125mm Fixed Castor, 180kg Capacity | Rubber Tyre Wheel, Roller Bearing (KF125RNB180)
£29.27125mm Top Plate Fixed Castor (Keystone Pressed Ste... Read Moreel) with 80x60mm Bolt Hole Centres. Blue Rubber Tyre on a Black Nylon Centre Wheel with Roller Bearing. Load Capacity = 180kg.Elastic rubber tyres is a type of rubber that it offers higher load capacities than standard rubber tyres. The roller bearing consists of steel rollers in a plastic cage that rotate between the axle tube and the wheel's hub. This greatly reduces rolling resistance even under load and roller bearings are maintenance free and robust. - In Stock
100mm Fixed Castor, 150kg Capacity | Nylon Wheel, Roller Bearing (XF100NYB130)
Original price was: £4.42.£4.29Current price is: £4.29. Sale!100mm Top Plate Fixed Castor (Pressed Steel) With ... Read More80X60 Hole Centres. The 4 fixing holes measure 9mm in diameter and suit an 8mm fixing bolt. The Castor Wheel is made from quality nylon and has a Needle Roller Bearing in the bore to reduce the effort required to push. This caster has a Load Capacity of 150kg when using manual propulsion at 4km/h (walking speed) - In Stock

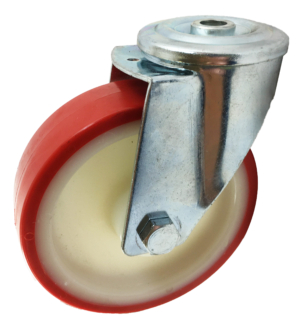

125mm Swivel Castor, 130kg Capacity | Polyurethane Tyre Wheel, Plain Bore (KS125APNBH)
£14.46125mm Single Bolt Hole (12mm) Swivel Castor wit... Read Moreh Red Polyurethane Tyre on a White Nylon Centred Wheel and Plain Bore. The Load Capacity of this castor is 130kg using manual propulsion at 4 km/h.
The Polyurethane tyre offers a low tractive resistance making it easier to get moving compared with softer rubber tread wheels. It is also a bit softer than hard tread wheels making the castor smoother and quieter running. Polyurethane is non-marking and gentle on floors. Put this wheel into a strong bracket that has a double ball race in the swivel head and you have a castor that is a great choice for the wide range of industrial and domestic applications.
- In Stock

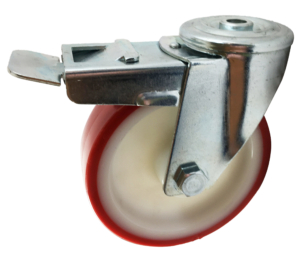

125mm Swivel Castor, 130kg Capacity | Polyurethane Tyre Wheel, Plain Bore (KS125APNBHBR)
£19.07125mm Single Bolt Hole (12mm) Swivel Castor wi... Read Moreth brake and Red Polyurethane Tyre on a White Nylon Centred Wheel (Plain Bore). The Load Capacity of this castor is 130kg using manual propulsion at 4 km/h.
The brake on this castor is a Total Stop Brake which is also known as a Swivel and Wheel Brake. This means that when the brake is applied, not only is the wheel braked but the swivel action is also locked.
A Polyurethane tyre offers a low tractive resistance making it easier to get moving compared with softer rubber tread wheels. It is also a bit softer than hard tread wheels making the castor smoother and quieter running. Polyurethane is also non-marking and gentle on floors. Put this wheel into a strong bracket that has a double ball race in the swivel head and you have a castor that is a great choice for the wide range of industrial and domestic applications.
- In Stock
100mm Swivel Castor, 150kg Capacity | Nylon Wheel, Roller Bearing (XS100NYB130)
Original price was: £5.93.£5.76Current price is: £5.76. Sale!100mm Top Plate Swivel Castor with 80mm x 60mm Bol... Read Moret Hole Centres and a White Nylon Wheel with Needle Roller Bearing. The castor is made from Pressed Steel and the bolt holes are slotted to 80/77mm x 60mm and each of the 4 holes suit an 8mm fixing bolt. The load capacity is 150kg using manual propulsion at 4km/h (walking speed)
