Medium Duty Castors - Pressed Steel (101kg to 250kg Capacity)
Medium Duty Pressed Steel Castors have a load capacity between 101kg to 250kg Individual Castor Load Capacity.A castor's load capacity is usually the first criteria that needs to be identified. If you need to carry a total load (including the transport equipment) over 4 castors of between 300kg or and 750kg...>, these are the castors for you. You can read more about Recommended Load Capacity Considerations here.
Your next criteria is likely to be how you're going to attach the castors and there are two main choices. A rectangular Plate Fixing or a Single Bolt Hole Fitting.
Next comes the Castor and Wheels. Our medium duty pressed steel castors have complete. These include Nylon/Polypropylene, Blue Elastic Rubber Tyre, Polyurethane (both Injection Moulded or Bonded), Grey or Black Rubber Tyre, Cast Iron.
Some users have specific bearing requirements too. A Smooth Plain Bore is simply a smooth hole in the middle of the wheel and the lowest cost option. It's great if you're not carrying too much weight. Roller Bearing and Ball Bearings are available and these are necessary to lower the rolling resistance (the force needed to keep a wheel which is carrying weight moving) Read More
- Display 15 Products per page
In Stock125mm Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Ball Bearing (1321068)
£14.13125mm Top Plate Swivel Castor (Pressed Steel) w... Read Moreith 80x60 Hole Centres. Blue Rubber Tyre / Nylon Centre Wheel with Ball Bearing. Load Capacity = 150kg
This is a 4 hole plate fitting castor and the bolt holes suit an 8mm bolt as well as being slotted (rather than round) to accommodate 80/76mm x 60x44.5mm.
- Out of Stock - On the Way
125mm Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Ball Bearing (1321118)

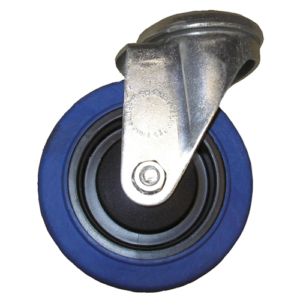

£16.10125mm Bolt Hole Swivel Castor (Pressed Steel) with... Read More 10mm Bolt Hole. Blue Rubber Tyre / Nylon Centre Wheel with Ball Bearing. Load Capacity = 150kg - In Stock
125mm Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Roller Bearing (MSVH125RN1B)
£12.06125mm Single Bolt Hole (12mm) Swivel Castor (Press... Read Moreed Steel). Blue Elastic Rubber Tyre / Nylon Centred Wheel with Roller Bearing. Load Capacity = 150kg - Out of Stock - On the Way
125mm Swivel Castor, 150kg Capacity | Rubber Tyre Wheel, Single Ball Bearing (MSVH125RN2B)
£16.51125mm Single Bolt Hole (12mm) Pressed Steel Swivel... Read More Castor. This castor has an Elastic Blue Rubber Tyred Wheel on a Nylon Centred Wheel with a Single Ball Bearing. The Load Capacity is 150kg using manual propulsion at 4km/h. - In Stock
125mm Swivel Castor, 160kg Capacity | Polypropylene Wheel, Plain Bore (LSV125PP)
£8.21125mm top Plate Swivel Castor with a White Polypro... Read Morepylene wheel. It has 80x60mm bolt hole centres and a load capacity of 160kg using manual propulsion at 4km/hThis is one of our most popular castors and the White Polypropylene wheel is non-marking and won’t damage concrete floors. Because it is a hard tread it has the lowest rolling and swivelling resistance. It is ideal as a new component or a replacement caster for most general purpose domestic or industrial castor where the travel speed of the castor generally does not exceed walking speed. - In Stock
125mm Swivel Castor, 180kg Capacity | Rubber Tyre Wheel, Plain Bore (561RN)
£34.53125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 140x105 Hole Centres. Rubber Tyre / Nylon Centre Wheel with Plain Bore. Load Capacity = 180kg - In Stock
125mm Swivel Castor, 180kg Capacity | Rubber Tyre Wheel, Roller Bearing (522RNB)
£30.43125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 80x60 Hole Centres. Blue Rubber Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 180kg - In Stock
125mm Swivel Castor, 180kg Capacity | Rubber Tyre Wheel, Roller Bearing (522RTB)
£40.37125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 80x60 Hole Centres. Rubber Tyre / Cast Iron Centre Wheel with Roller Bearing. Load Capacity = 180kg - In Stock
125mm Swivel Castor, 180kg Capacity | Rubber Tyre Wheel, Roller Bearing (561RNB)
£35.96125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 140x105mm Bolt Hole Centres. Blue Rubber Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 180kg - In Stock
125mm Swivel Castor, 200kg Capacity | Nylon Wheel, Ball Bearing (MSV125NY2B)
£10.98125mm White Nylon Wheel with a ball bearing fit... Read Moreted into a pressed steel swivel castor bracket. The Swivel Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 200kg using manual propulsion at 4km/h (walking speed)
The Nylon Wheel is a hard wheel giving it a low tractive resistance which makes it it easier to get moving compared with softer rubber tread wheels. The strength of nylon and because it wont damage concrete floors makes it one of the most popular choices. The ball bearing lowers the rolling resistance to reduce the effort required to move the castors. Put this wheel into a strong bracket that has a double ball race in the swivel head makes this castor a great choice for the widest range of industrial and domestic applications.</p>
- In Stock
125mm Swivel Castor, 200kg Capacity | Nylon Wheel, Roller Bearing (MSV125NY1B)
£10.59125mm White Nylon Wheel with a roller bearing f... Read Moreitted into a pressed steel swivel castor bracket. The Swivel Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 200kg using manual propulsion at 4km/h (walking speed)
The Nylon Wheel is a hard wheel giving it a low tractive resistance which makes it it easier to get moving compared with softer rubber tread wheels. The strength of nylon and because it wont damage concrete floors makes it one of the most popular choices. The roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Put this wheel into a strong bracket that has a double ball race in the swivel head makes this castor a great choice for the widest range of industrial and domestic applications.
- In Stock
125mm Swivel Castor, 200kg Capacity | Polyurethane Tyre Wheel, Ball Bearing (MSV125PN2B)
£13.05125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 80x60 Hole Centres. Polyurethane Tyre / Nylon Centre Wheel with ball bearing. Load Capacity = 200kg - In Stock
125mm Swivel Castor, 200kg Capacity | Polyurethane Tyre Wheel, Roller Bearing (MSV125PN1B)
£15.31125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 80x60 Hole Centres. Polyurethane Tyre / Nylon Centre Wheel with Roller Bearing. Load Capacity = 200kg - Out of Stock - On the Way
125mm Swivel Castor, 200kg Capacity | Rubber Tyre Wheel, Ball Bearing (MSV125RN2B)
£12.45125mm Blue Elastic Rubber Tyre on a nylon centr... Read Moree wheel with a ball bearing fitted into a pressed steel swivel castor bracket. The Swivel Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 200kg using manual propulsion at 4km/h (walking speed)
The Blue Elastic Rubber Tyre offers a higher load capacity than standard grey or black rubber tyres and is non-marking, gentle on floors and the rubber absorbs vibrations whilst in motion making this a low noise option. The ball bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket that has a double ball race in the swivel head makes this castors a great performer and one of our most popular products.</p>
- In Stock
125mm Swivel Castor, 200kg Capacity | Rubber Tyre Wheel, Roller Bearing (DSRN12511030)
Original price was: £14.80.£9.95Current price is: £9.95.Sale!125mm Top Plate Swivel Castor (Pressed Steel) with... Read More 80x60mm Fixing Bolt Hole Centres. Blue Elastic Rubber Tyre on a Nylon Centre Wheel with Roller Bearing. Load Capacity = 200kgThe Blue Elastic Rubber offers a higher load capacity over standard grey or black rubber tyres and will not mark floors. It is a great choice where you need a softer yet resilient wheel that will not mark or damage floors.The wheel is fitted with a roller bearing which consists of steel rollers housed in a plastic cage that lowers rolling resistance even when under load.
