Description

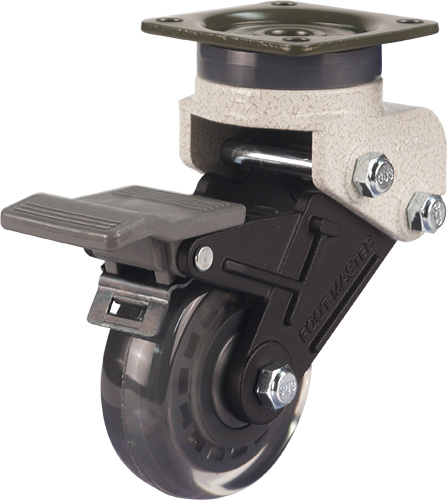

65mm Shock absorbing Swivel with Brake Castor with Top plate measuring 55x55mm and 42x42mm fixing bolt holes centres to suit 6mm fixing bolts. The wheel as a soft (Shore 80A) polyurethane tyre for high elasticity and is fitted with a precision ball bearing. This castor has as load capacity of 50kg.
The brake on this castor locks the wheel only allowing the swivel head to rotate freely when the brake is applied. The Top Plate is made from pressed steel and has a double ball race with hardened bearing seats in the swivel head for smooth swivel rotation. The frame is aluminium. The parts have powder coated and zinc plated for protection.
The shock absorbing functions means that the overall height can vary by 10mm. The castor’s height without load is 115mm and this reduces incrementally by up to 10mm as the load increases providing up t0 10mm of compression for a fine shock absorbing function.
