Description

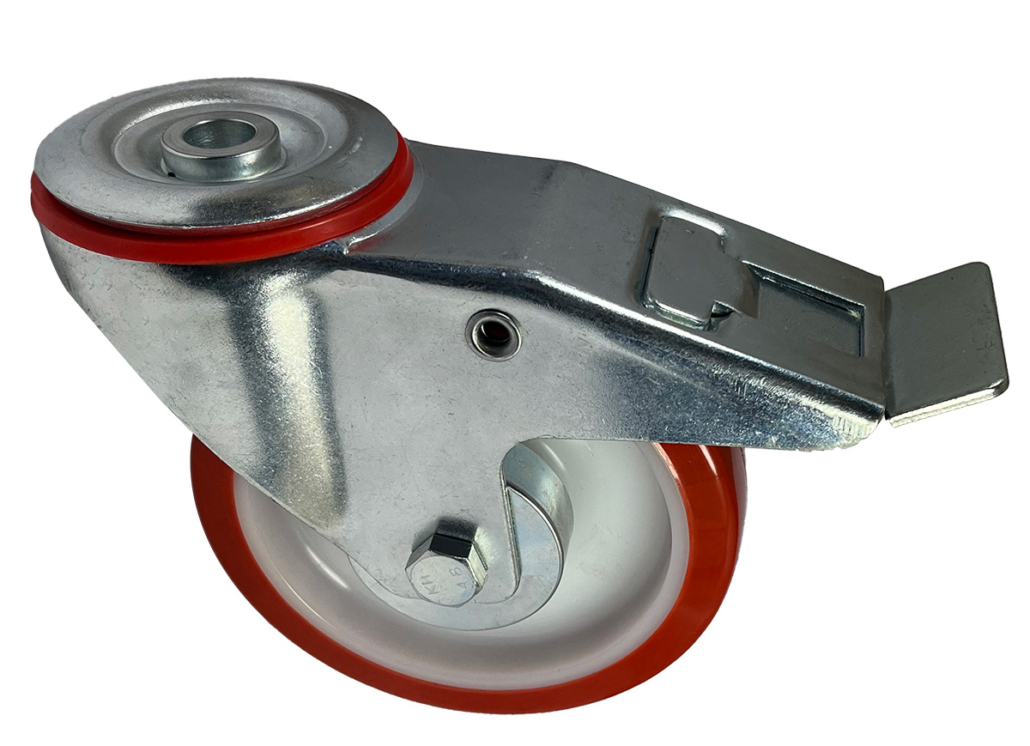

160mm Single Bolt Hole (16mm) Swivel Castor with Swivel and Wheel Brake (Pressed Steel). The wheel has a Red Polyurethane Tyre (Shore A 92) on a White Nylon Centred Wheel with a Roller Bearing. The Load Capacity is 300kg using manual propulsion at 4km/h (walking speed).
Key Specifications:
- Bolt Hole Size: 16mm
- Brake Style: Swivel & Wheel Brake (also known as a Total Stop Brake because it locks both the swivel rotation and wheel when applied)
- Overall Height: 185mm
- Tread Width: 40mm
- Bearing Type: Roller Bearing
- Swivel Radius: 203.5mm
To reduce the bolt hole to suit a 12mm fixing bolt, a reducing washer can be used. Click here for the ACZ600.
