Description

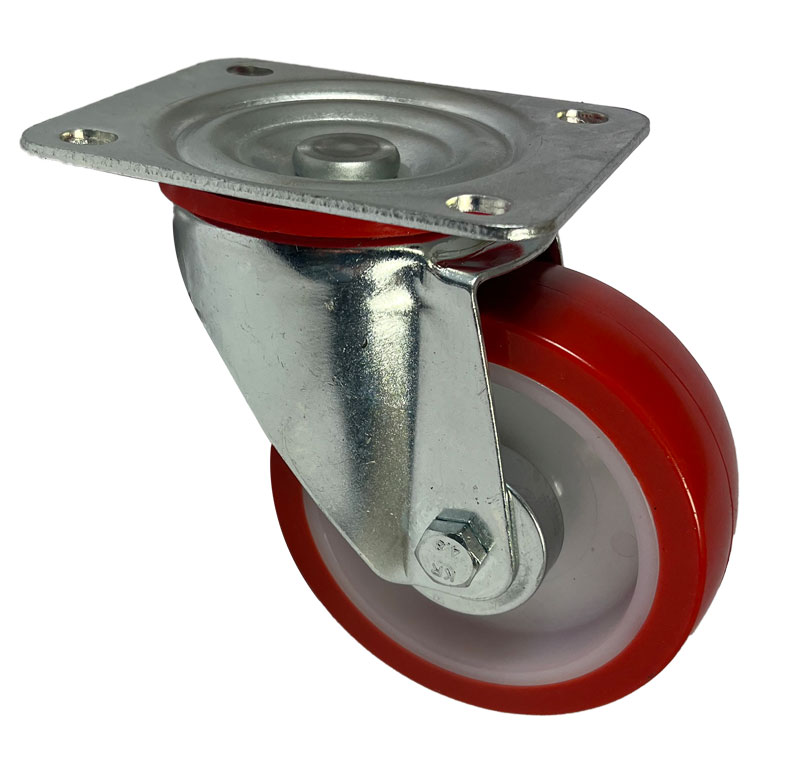

100mm Red Polyurethane Tyre Wheel on a Nylon Centre with a roller bearing fitted into a pressed steel swivel castor bracket. The Swivel Bracket has a 4 hole top plate with 80x60mm bolt hole spacing. The load capacity of this castor is 180kg using manual propulsion at 4km/h (walking speed)

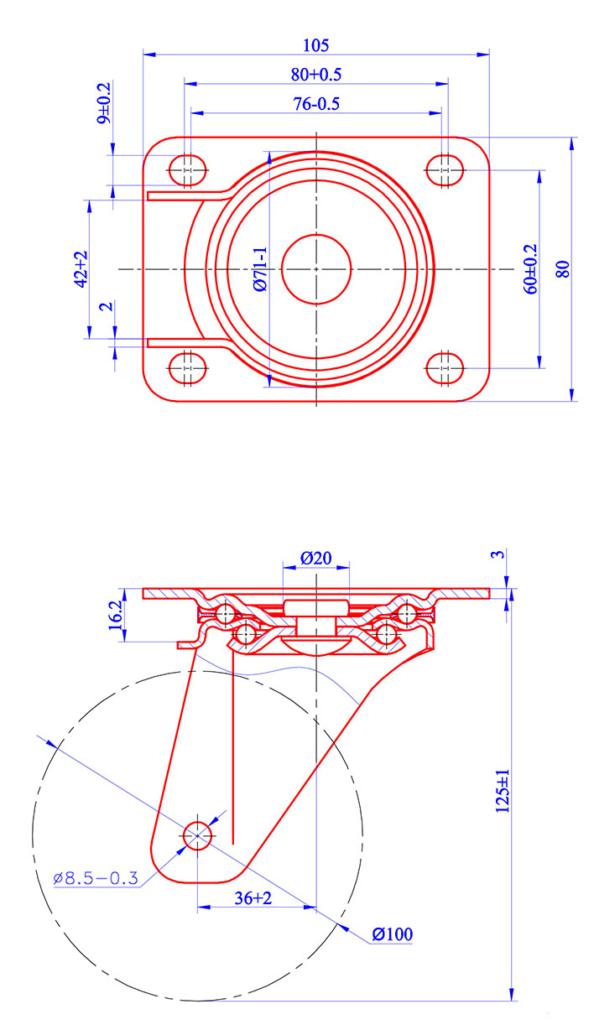

Key Specification:
- Top Plate Size: 105x80mm
- Bolt Hole Centres: 80/76X60mm
- Bolt Hole Size: 9mm (to suit M8 Fixing Bolts)
- Overall Height: 125mm
- Offset: 36mm
- Swivel Radius: 86mm
- Tread width: 34mm
- Bearing Type: Roller Bearing
- Tyre Hardness: Shore A 92
- Key Features:
- High Load Capacity
- Low Rolling Resistance
- High Wear Resistance
- Reduce Vibration
- Low noise Operation
The Polyurethane tyre offers a low tractive resistance making it easier to get moving compared with softer rubber tread wheels. It is also a bit softer than hard tread wheels making the castor smoother and quieter running. The polyurethane tyre is also non-marking and gentle on floors while the roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Put this wheel into a strong bracket that has a double ball race in the swivel head and you have a castor that is a great choice for the wide range of industrial and domestic applications.
