Description

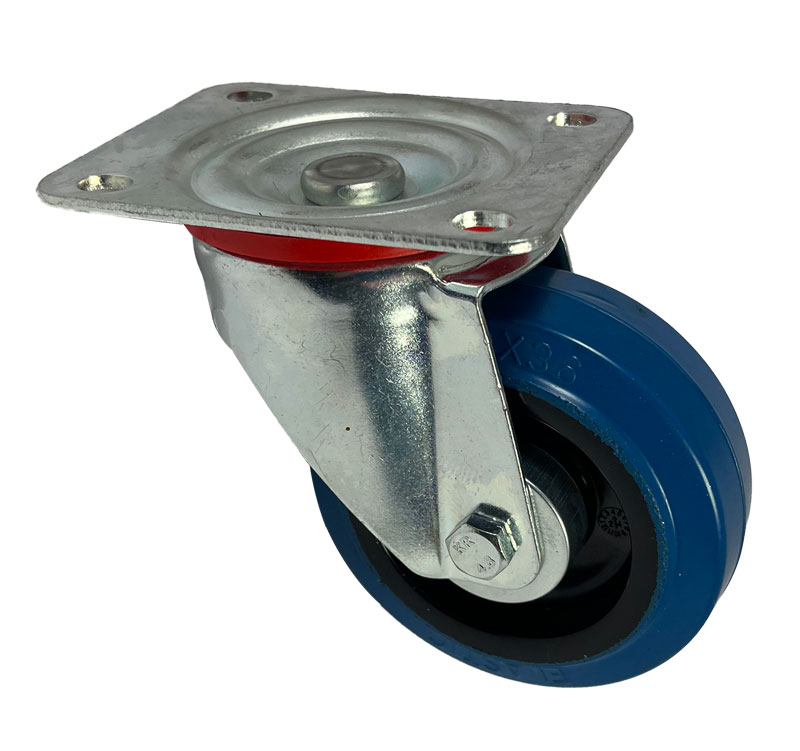

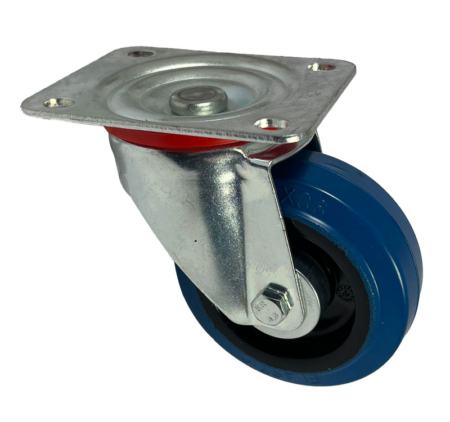

100mm Blue Elastic Rubber Tyre on a nylon centre wheel with a roller bearing fitted into a pressed steel swivel castor bracket. The Swivel Bracket has a 4 hole top plate measuring 105x80mm with 80x60mm bolt hole spacing. The load capacity of this castor is 180kg using manual propulsion at 4km/h (walking speed)
Key Specification:
- Top Plate Size: 105x80mm
- Bolt Hole Centres: 80/76X60mm
- Bolt Hole Size: 9mm (to suit M8 Fixing Bolts)
- Overall Height: 125mm
- Offset: 36mm
- Swivel Radius: 86mm
- Tread width: 36mm
- Bearing Type: Roller Bearing
- Tyre Hardness: Shore A 68
Key Features:
- High Load Capacity
- Low Rolling Resistance
- Reduce Vibration
- Low noise Operation
The Blue Elastic Rubber Tyre offers a higher load capacity than standard grey or black rubber tyres and is non-marking, gentle on floors and the rubber absorbs vibrations whilst in motion making this a low noise option. The roller bearing lowers the rolling resistance to reduce the effort required to move the castors. Together with the strong bracket that has a double ball race in the swivel head makes this castors a great performer and one of our most popular products.
