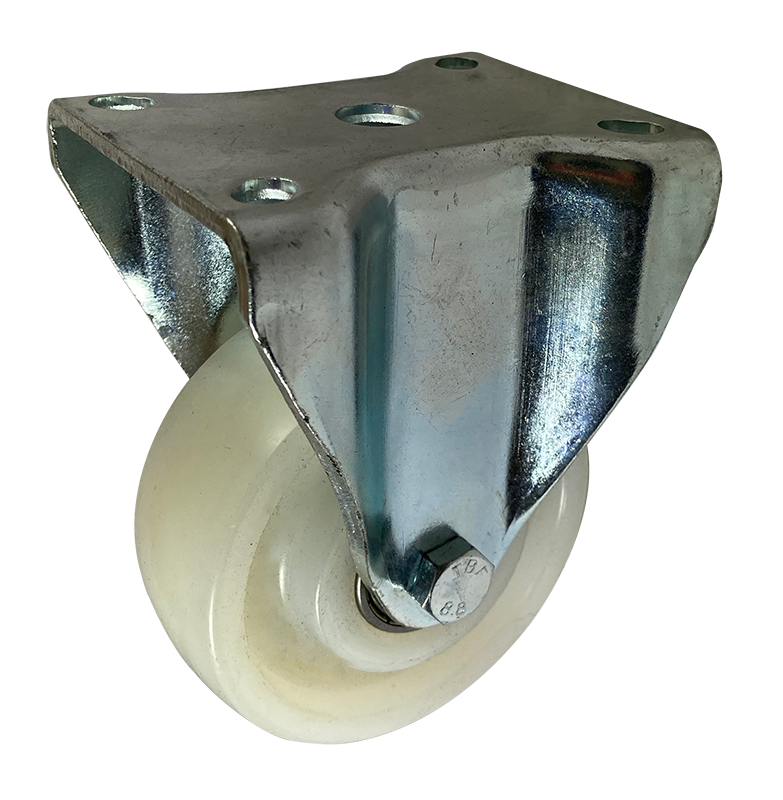

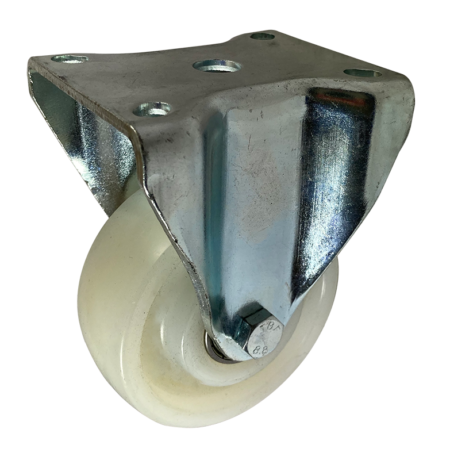

100mm Heavy Duty Fixed Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HFV100NY2B)

Related products

•

  • Description
  • Specifications

  100mm Heavy Duty Swivel Brake Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HSV100NY2BBR)

  100mm Heavy Duty Top Plate Swivel and Brake Castor... Read More with Heavy Gauge Pressed Steel and a load capacity of 500kg. The swivel head has a double ball race with hardened ball race track.The brake is a Total Stop Brake which is also known as a Swivel and Wheel Brake. This type of brake locks both the wheel and the swivel head so that the swivel head will not rotate while the brake is applied.The Top Plate measure 105x80mm with 80x60mm Fixing Bolt Hole Centres. The bolt holes are slotted to 80/75x60/55mm and suits 8mm Bolts.The castor wheel is a white nylon wheel (polyamide) with a 37mm tread width and fitted with two precision ball bearings. The hard wheel is non-marking and has the lowest rolling and swivel resistance.This castor is an excellent all purpose heavy duty castor. It is often used with high load mobile storage and transportation equipment in domestic, mechanical and industrial applications.Download HDV Series Datasheet Here

  £29.96 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  100mm Heavy Duty Swivel Castor, 500kg Capacity | White Nylon Wheel, Ball Bearing (HSV100NY2B)

  This 100mm heavy-duty swivel castor is designed fo... Read Morer demanding applications in both industrial and domestic settings. Featuring a top plate made from heavy gauge pressed steel, it offers exceptional durability and strength. The swivel head includes a double ball race with a hardened ball race track, ensuring smooth and reliable movement.Key Features:

  • Load Capacity: Supports up to 500kg, making it ideal for heavy loads.
  • Top Plate Dimensions: Measures 105x80mm, with fixing bolt hole centres at 80x60mm. The slotted bolt holes (80/75×60/55mm) accommodate 8mm bolts for easy installation.
  • Wheel Material: The castor features a white nylon (polyamide) wheel with a 37mm tread width, designed to provide non-marking performance.
  • Precision Bearings: Fitted with two precision ball bearings, this castor offers the lowest rolling and swivel resistance in its class, ensuring effortless movement even under heavy loads.

  This versatile, all-purpose heavy-duty castor is perfect for use in high load mobile storage, transportation equipment, and other mechanical applications. Whether for industrial or domestic use, this castor delivers reliability and performance.Download HDV Series Datasheet Here

  £26.14 Compare

  In Stock

  Qty

  Add To Basket
•

  • Description
  • Specifications

  M8 x 25mm High Tensile Steel Bolt, Nut & Washer Set (BOLTSETM8X25)

  4 pack of M8 x 25mm High Tensile Steel Bolt, Nut (... Read Morenyloc), and Washer sets to fix your castors to your equipment.  Nyloc Nuts contain a nylon insert that grips onto the bolt and prevents the nut from loosening due to the vibration that occurs when the castor wheel is moving. The pack contains:

  • (Qty 4) M8 x 25mm Threaded Bolts Grade 8.8 Hex Set finished in Bright Zinc Plate (BZP).
  • (Qty 4) M8 Nylon Insert (Nyloc) Nuts (9.5mm Height) with BZP finish.
  • (Qty 4) M8 Washers (16mm outside diameter, 8.4mm inside diameter, 1.8mm thick) with BZP finish.

  £1.83 Compare

  In Stock

  Qty

  Add To Basket
